Nintendo 2DS XL Teardown

Written By: Michael Degnan
Published: 01/08/17
  • Comments: 19

Nintendo 2DS XL Teardown

Published: 01/08/17

Teardown

Introduction

Nintendo's brand new handheld console, the 2DS XL can play all your 3DS games in 2D. But what happens when we break out our tools and bring the 2DS into the teardown dimension?????

When you have to give someone else a turn to play, find us on Facebook, Instagram, or Twitter to learn something new.

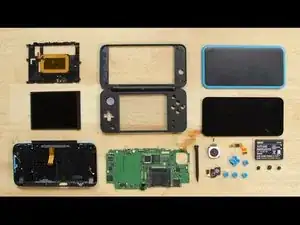

  1. wAhLyG2j4dM5rHY3

    • The battery is fairly easy to swap out once you remove the back cover.

    • The rear panel is secured by tri-point screws.

    • The headphone jack and charging connector are soldered to the motherboard.

    • The upper display is glued in place and requires prying that can potentially break the display.
