Nikko La Nera Junior Teardown

Written By: Federico Barutto
Published: 20/02/12
  • Comments: 1

Nikko La Nera Junior Teardown

Published: 20/02/12

Teardown

Introduction

  1. bGZhge4VNiJtZfRs

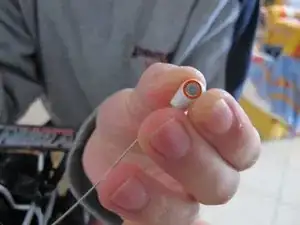

    • The Car, the Remote Control and a Phillips screwdriver.

  2. wB2NMQIrKDxAOa2W

    • Let's start!

    • Remove this screw.

  3. Fr3EwA5GqlTsECnY
    Fr3EwA5GqlTsECnY
    th2YW3yP1wRXJQCk

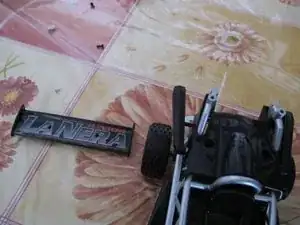

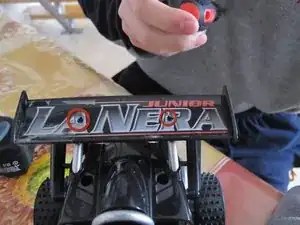

    • The rear wing

    • Unscrew this black screws

    • Remove the wing

  4. XjMJAXlTNTb4dQy3
    XjMJAXlTNTb4dQy3
    nHWxWugUHVoHAN4R
    BFSLqImgS4yLxj1j

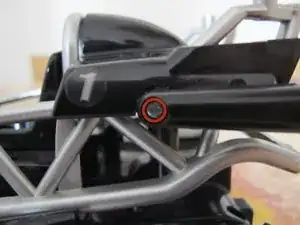

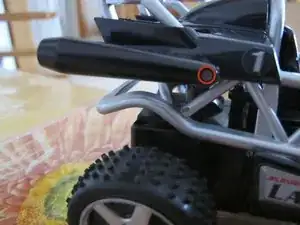

    • The Exhausts

    • Remove these screws

    • Remove the exhausts

  5. OrXhnqbsmbZK3H3S

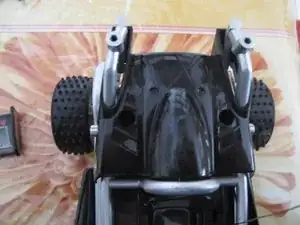

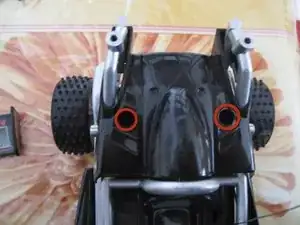

    • The Rear Cover

    • Remove these screws

  6. XCipOABuHKrgDonn
    XCipOABuHKrgDonn
    ZNHbGROXhDQtybZR

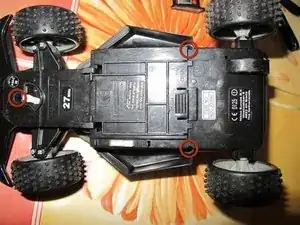

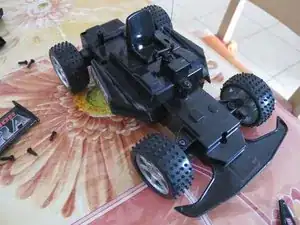

    • The "tubolar" body

    • Flip the car

    • Remove these screws.

    • Remove the body

  7. KSnCAvKXM6cOCsLA
    KSnCAvKXM6cOCsLA
    oTbrlbROFLGwABxq

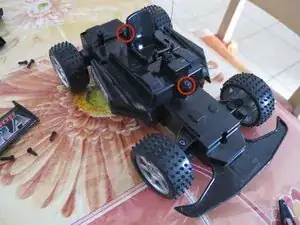

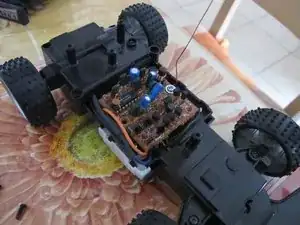

    • The seat

    • Remove these screws (one of these is back of the seat)

    • Remove the seat.

  8. 6jtqyXDwqCdIB6kH
    6jtqyXDwqCdIB6kH
    S1ZHbHpPKJhtTjVM
    TI6RbJUZgHgqMTdu

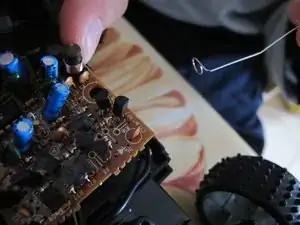

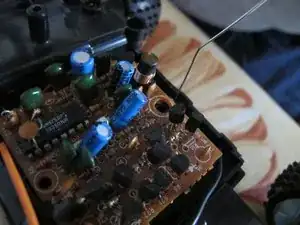

    • The antenna

    • Remove this screw

    • Raise the circuit board

    • Remove the antenna

  9. BqbRPRGjFVy1xU2o
    BqbRPRGjFVy1xU2o
    2dG2iEcT1f2FIuEB

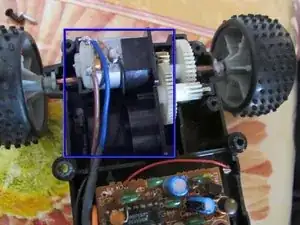

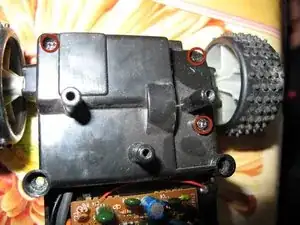

    • The "engine"

    • Remove these screws

    • Remove the gears cover

    • Remove the engine block

  10. QuktwcRdI3EVIfBA
    QuktwcRdI3EVIfBA
    e2QASxilTSxhteVQ
    vywQj2Iw6qE64QGl

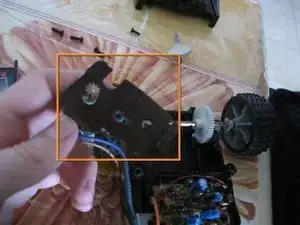

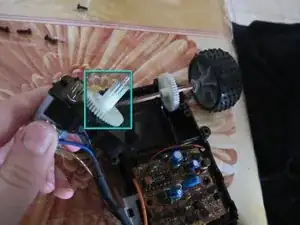

    • Remove the gear and his hinge

    • Remove this piece of plastic

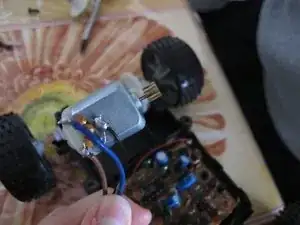

    • The Engine!

  11. KUcfGFyih2GJYnJn

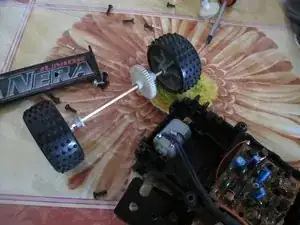

    • Remove the wheels from the car

  12. FSAbIEioDOs4BeND
    FSAbIEioDOs4BeND
    pdc5T2YvfrCWg2nW
    eWoXP3bEIueDgv4H

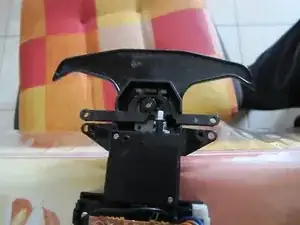

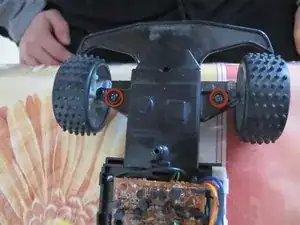

    • The Steering Mechanism

    • Remove these screws

    • Remove the cover

    • Lift the wheels

  13. 6kerEwGCAZeBomyW
    6kerEwGCAZeBomyW
    pjQaLR1n2hTqOY3P

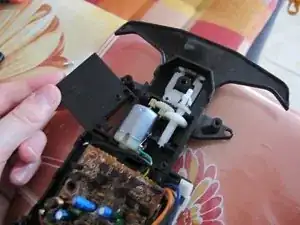

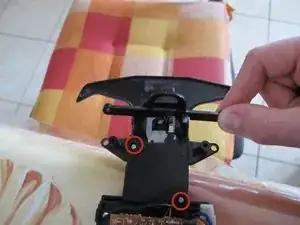

    • Remove the steering bar...

    • ...the two screws...

    • ...and the cover.

  14. AgR2uaXLPpQP1SCG
    AgR2uaXLPpQP1SCG
    CPSCd25cTxg1J3Cv

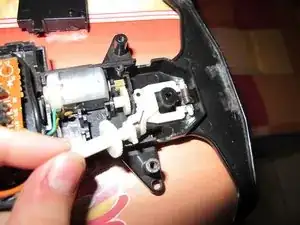

    • Remove the first "gear"...

    • ...and the second.

  15. 4i3EleWtv2CEKRsh
    4i3EleWtv2CEKRsh
    jI2qxN6keRInSdkn
    ITcXDPPUMeWGWQKa

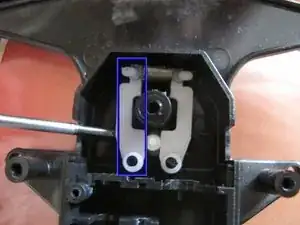

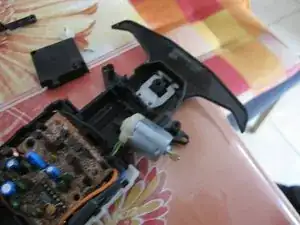

    • Remove the steering motor

    • Remove the plastic cover

    • Be careful!

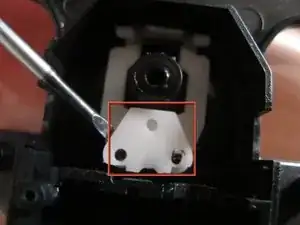

    • Remove this piece

  16. 15Im1gaLikkeCLb6

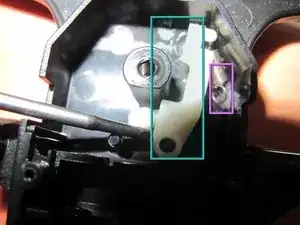

    • Remove the second piece...

    • ...and the spring.

    • Congratulations! The car is torn down!

  17. nGtkMDTZcBD6ph6d
    nGtkMDTZcBD6ph6d
    XsQOHCYiV3vxKQKF

    • Let's tear down the remote!

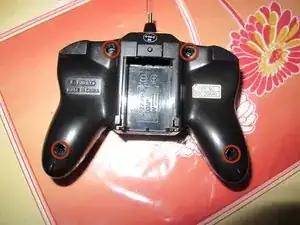

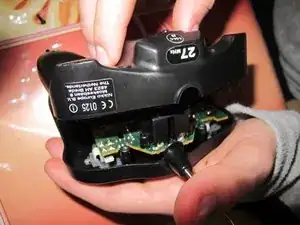

    • Remove these screws

    There is a small white plastic piece and I do not know where in the remote it need to go for reassembly. Please help!

    susanriegel -

  18. RtsXrZFap3mLiHQS
    RtsXrZFap3mLiHQS
    dHMwHcL6PaSyupKq
    RhXoVDR3eMN2mbJk

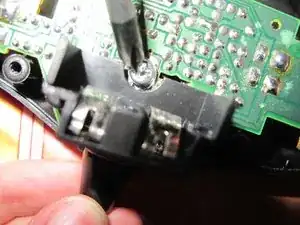

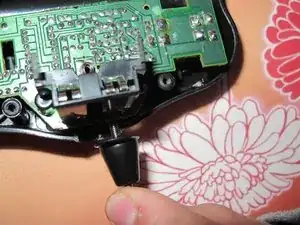

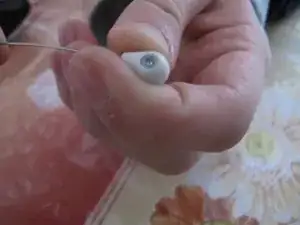

    • Remove the screw in the PCB

    • Remove the screw in the piece of plastic at the end of the antenna

    • Remove the plastic piece around the beginning of the antenna

  19. x1RZygMCWQbRiSPH
    x1RZygMCWQbRiSPH
    gHLNZGmgLqxDarIU
    QbenEvUTWDEDxVOD

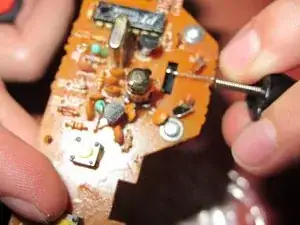

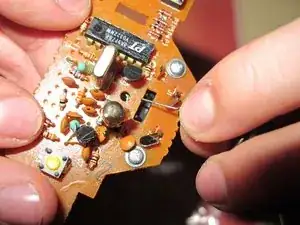

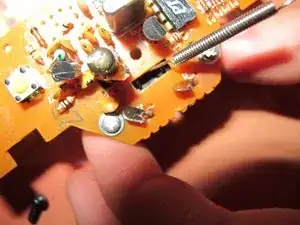

    • Carefully de-route the antenna from the PCB

  20. OEqmWPbJFDOZinPG
    OEqmWPbJFDOZinPG
    GyXPxHhqXjGGjUAl

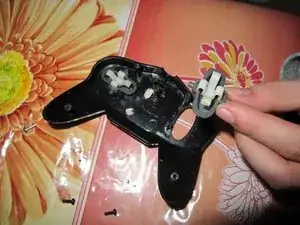

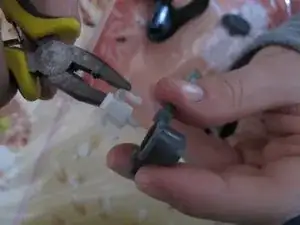

    • Detach the two parts of eat key.

    • Congratulations! You've ended the teardown!
