Microdigital TK 85 Teardown

Written By: Vinicius Rodrigues Bellini
Published: 20/05/23
  • Comments: 1

Microdigital TK 85 Teardown

Published: 20/05/23

Teardown

Introduction

The TK85 was a ZX81 clone made by Microdigital Eletrônica, a computer company located in Brazil.

  1. Zj5sppLRbAEYPWT5
    Zj5sppLRbAEYPWT5

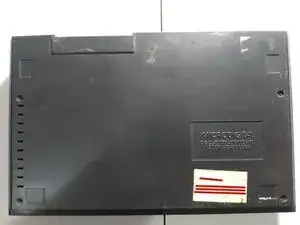

    lDtTXLlv4EBEuEc5

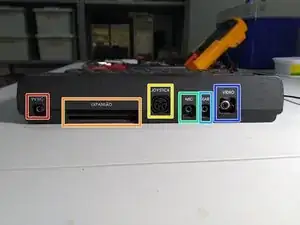

    CR1IERwiATDUaYCL

    • 9V DC = Nomo P2 power supply

    • Expansão = Expansion connector 2x23 edge pins.

    • Joystick = Joystick connector DIN-6-07M.

    • Mic = audio output for a datacorder.

    • Ear = Audio input for a datacorder.

    • Video = RF chanel 3 VHF output.

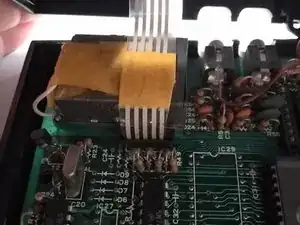

  2. KGsnvyNRTEItWlBN

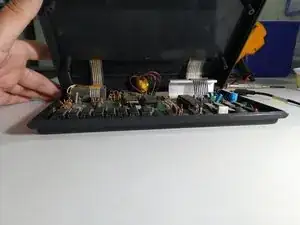

    KGsnvyNRTEItWlBN
    lRSD5teRpIq5EGNq
    AKFO6jTGU4GE3GaZ

    • Open it carefully because of the 2 keyboard flat cables.

    • Those flat cables are very problematic

  3. c3eppD4RMUGhVmgY

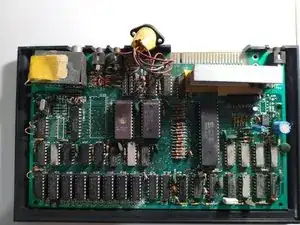

    c3eppD4RMUGhVmgY

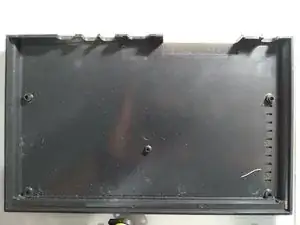

    GBPX1NyxZH4UAvAg

    • The upper part of the case is the keyboard, but the keyboard itself is not removable.

    • The lower part of the case is just a plastic part.

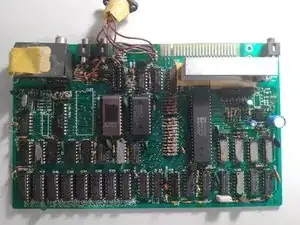

  4. ndjoZSSh2Z1PVWLk
    ndjoZSSh2Z1PVWLk

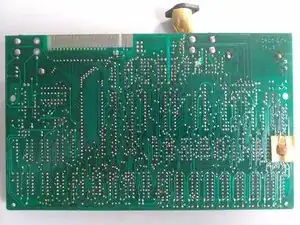

    3vJPctikXvSw2f2F

    • The circuit board is a very compact circuit board with dual layer traks.

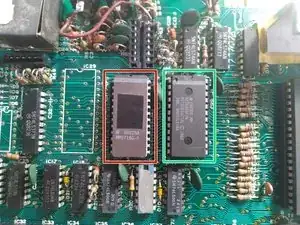

  5. x53ymqFIURiCHaEW
    x53ymqFIURiCHaEW
    jrXQx2mBCMyL3Qn1

    • MM2716Q-5 => 16Kb Eprom

    • 52164KSF/N => 64kb Rom ? It is a custom Microdigital Rom compatible with the NMC2764.

    • MCM4116BC-15 => 8 x 16,348 bits Ram = 16Kb Ram

  6. HFypHUIJkrujYjin

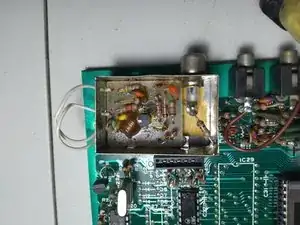

    HFypHUIJkrujYjin
    FqZxnwuHWjZEWtPi

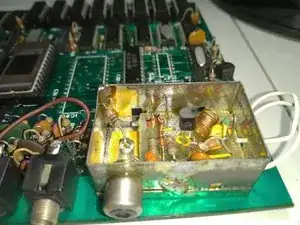

    mk4hLgllJ5PHdJOR

    • Just a RF Chanel 3 VHF modulator.

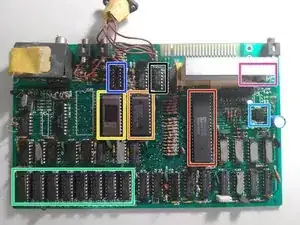

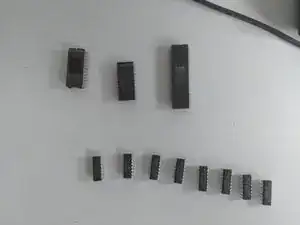

  7. jUBPhKyTEGB2Urbp
    jUBPhKyTEGB2Urbp
    B4U1wngl6fQcVNYU

    • Microprocessor

    • Rom

    • Eprom

    • Ram

    • Oscilator 555. Works as an PWM 5 Volt power supply to the micropocessor.

    • Spare space for an audio integrated circuit. It was never implemented in producion in this model.

    • Voltage regulator 7805

    • Frequency divider = 6,5Mhz used for video and 3,25Mhz used for actual clock.

    Olá Rodrigo, tudo bem?

    Tenho um TK 85 com 16 KB TB, e quero aumentar a memória pra 48 KB trocando as memórias 4116 por 4164.

    Mas encontrei três tipos dessa memoria, com terminações no nome, de -10, -12 e -15.

    Já viu fotos da placa original com 48K?

    Sabe qual a Microdigital usou?
