Digital Caliper Teardown

Written By: Sebastian
Published: 27/08/22
  • Comments: 1

Digital Caliper Teardown

Published: 27/08/22

Teardown

Introduction

  1. DkBNHgPovbpKYmdI
    DkBNHgPovbpKYmdI
    EhGa4NytlPFVCObN

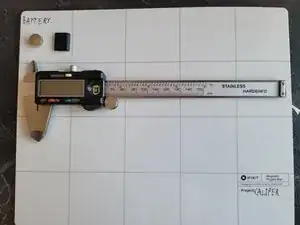

    • Slide the battery compartment open.

    • Pull out the battery.

  2. QFiSWUyotABqID5R
    QFiSWUyotABqID5R
    tHnHIoUnYfT3wYZT

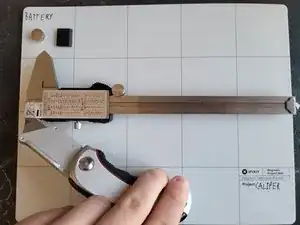

    • Remove the sticker and place it on a clean sticker-friendly surface.

    • Screw out the 9-mm screws using the J0 Bit.

  3. 2tP5fkCmeCeKXcUD
    2tP5fkCmeCeKXcUD
    lQ6KKhhJEUtVvWEA
    vBUPtBtwUXfra3oB

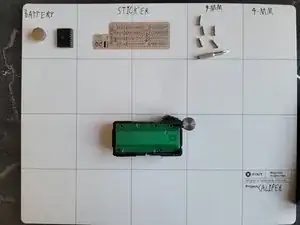

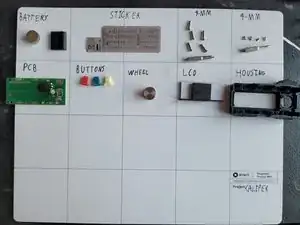

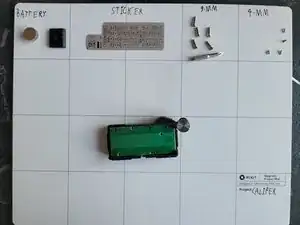

    • Screw out the 4-mm screws holding the PCB in place. Use the J000 bit.

    • Now take out all the parts from the housing.

  4. XdNNPF6XwpgbRXgB
    XdNNPF6XwpgbRXgB
    Ev1irLNFKqklpZTT

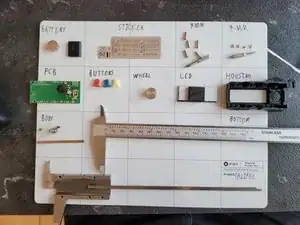

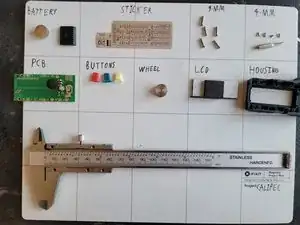

    • Remove the right/bottom 6mm screws.

    • Then the last 2 and the tightener screws. So you can pull it apart.
