Bluesmart Black Edition Teardown

Written By: 9021007
Published: 30/01/23
  • Comments: 0

Bluesmart Black Edition Teardown

Published: 30/01/23

Teardown

Introduction

  1. mCWw3JYPy1SP53ge
    mCWw3JYPy1SP53ge
    HhbPbKuju3SATHfR
    BvVshdfkrWLUOCMK

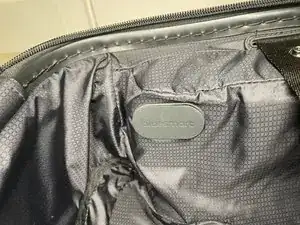

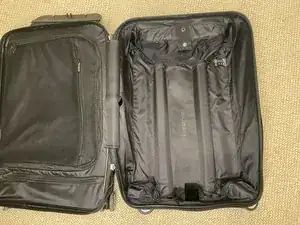

    • Open the suitcase.

  2. qnTvNKvMeCiAlYsl
    qnTvNKvMeCiAlYsl
    MlxMIDIscWDHGZPt
    OKKNHvykqZhWTWEZ

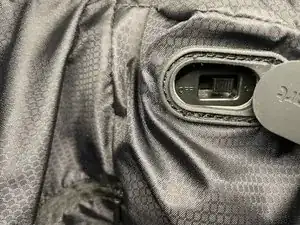

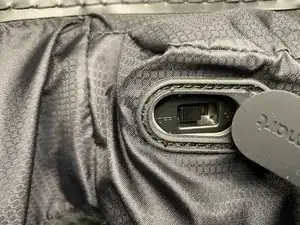

    • Open this switch cover and power off the device.

  3. FVE1ZuPNBEXo1ibh
    FVE1ZuPNBEXo1ibh
    tY2BwPSVVRf5tNLR

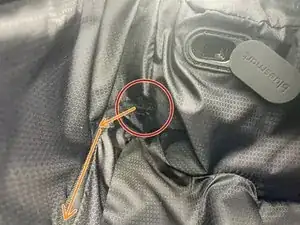

    • Slide the zipper this direction

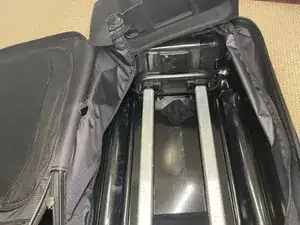

  4. UWXOSYoSIykR5Tjk

    • Lift it out of the way.

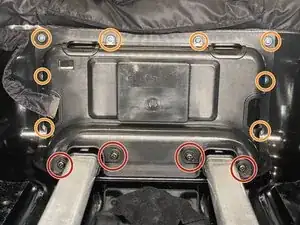

  5. PvhNIpFeQtIRemFw

    • Unscrew the 4 large Phillips screws

    • Unscrew the 8 smaller Phillips screws

  6. ATVNOjKRfGWis1cg

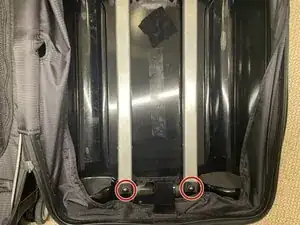

    • Remove these 2 large Phillips screws

    • These screws are different than the ones from the previous step. Keep them separate.

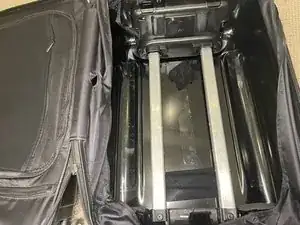

  7. WO421A1fYFe5y1M2

    • Make sure they are all screws are completely removed before proceeding

  8. nwZTcdhTwBuqX6QT
    nwZTcdhTwBuqX6QT
    6tKXwQReEx2nEacE

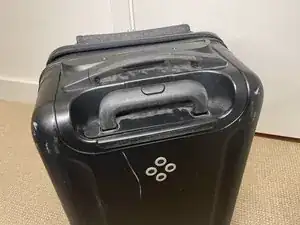

    • Stand the suitcase up

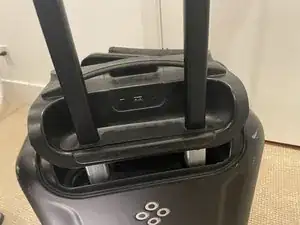

    • Pull up on the handle

    • Only pull as far as shown in the photo, or you will end up breaking cables.

  9. NhYoaEHSnhpJiApG
    NhYoaEHSnhpJiApG
    rUVHpGZpnY2SWkry

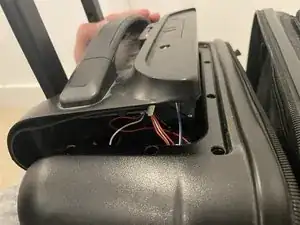

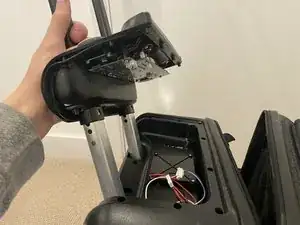

    • Carefully disconnect the 3 cables connecting the circuit board to the suitcase.

    • Pull by the connector, not by the wires.

  10. d4JPEZxAqkEUTCTS

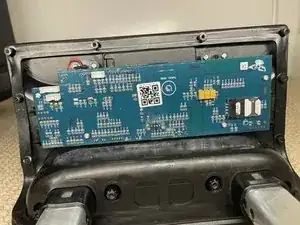

    • We can now see the bottom of the circuit board. It has a QR code with a serial number or MAC address.

    • It also has a SIM card slot.

  11. YMZDRZotEWFXmMkq
    YMZDRZotEWFXmMkq
    dGMHFFWXOntDJCPO
    PA4P3CGAkE1LruUA

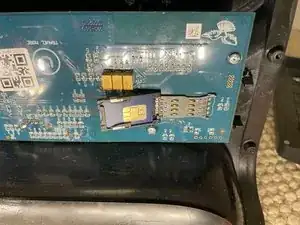

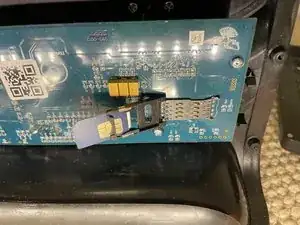

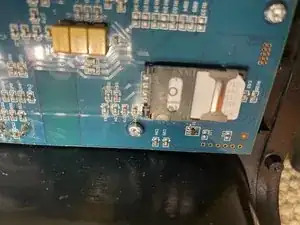

    • To remove the SIM card, use your nail to slide the metal bracket back

    • Then, flip the bracket, and slide out the SIM card.

    • Make sure the SIM card is all the way back in the bracket before closing.

  12. DJhuqN2oMZnYWLmD
    DJhuqN2oMZnYWLmD
    X1Kaqv2OdQVvDQ4N
    JGkRFWCQMFyh2aWO

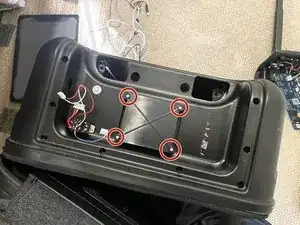

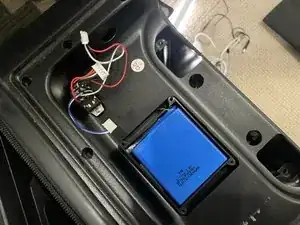

    • To replace the battery, remove these 4 Phillips screws.

  13. eQYqHjiP14Yu3IBV

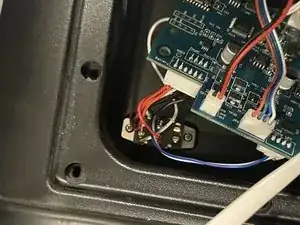

    • To remove the power switch, remove these 2 small Phillips screws.

    • You will need a smaller screwdriver

  14. e13vlTyjvB2Afs1S
    e13vlTyjvB2Afs1S
    6N2gNXYJY6SOwajL
    fqbDobFEe34GeJJH

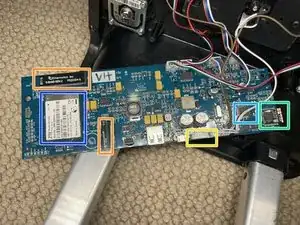

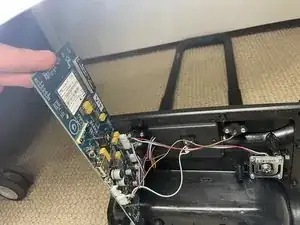

    • After removing the screws holding circuit board in place, you flip it down.

    • Cellular/GPS Antennas

    • Empty USB header used in the Bluesmart One

    • Bluetooth module (CC2541)

    • Microcontroller - ABOV 96F4548L (48KB ROM, 2KB EEPROM, 256B iRAM, 1.5KB xRAM)

    • Cellular/GPS Module (ZTE MF206A)
