Introduction
This guide shows how to remove and replace an inner tube of a tire. This process may difficult he first time it is attempted.
Tools
Parts
-
-

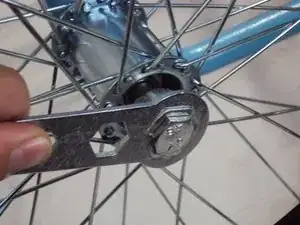

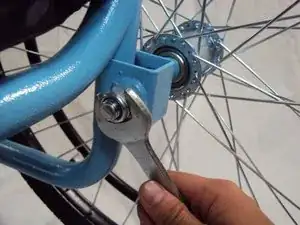

Remove the flat tire by loosening and removing the axle nut with a 19 mm wrench.
-

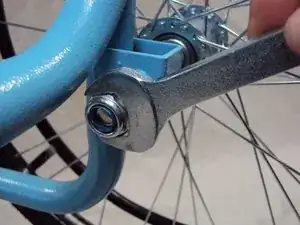

Unscrew the axle bolt with a 19 mm socket wrench.
-

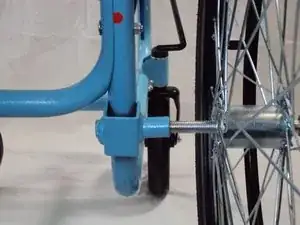

Remove the axle bolt from hole and remove the wheel from the wheelchair.
-
-
-

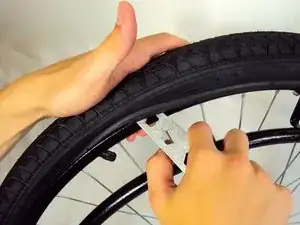

Insert the 19 mm socket wrench between the rubber tire and the metal frame.
-
Carefully run the 19 mm socket wrench along the edge of the tire all the way around and bend the wrench down to pop the tire out of the rim.
-

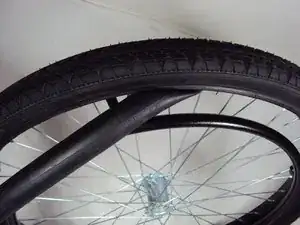

Reach inside the tire and remove the tube from the metal frame.
-
-
-

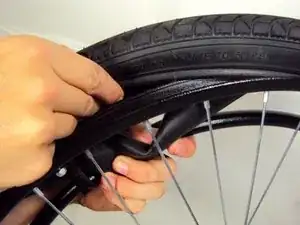

Working all around the tire, carefully push the tube back into place inside the tire.
-
Finally, push the tire back into place on the metal frame and inflate the tire.
-
-
-

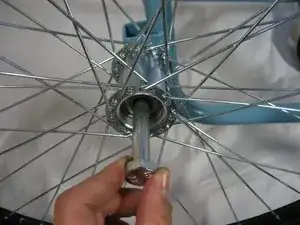

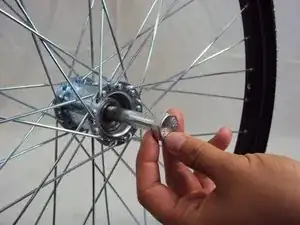

Insert the axle bolt into center of rear wheel.
-
Insert the wheel with the axle bolt into the lower back of the frame.
-
-
-
Screw the bolt on the outside of the wheel with a 19 mm socket wrench.
-
Screw the nut on the inside of the wheel with a 19 mm wrench.
-
To reassemble your device, follow these instructions in reverse order.
