iMac Intel 24" EMC 2267 Optical Drive Replacement

Written By: Brittany McCrigler
  • Comments: 1
iMac Intel 24" EMC 2267 Optical Drive Replacement

Difficulty

Moderate

Steps

2

Time Required

No estimate

Introduction

Pre-req only

  1. TZrEAmUsUDYN6wHi
    TZrEAmUsUDYN6wHi
    AZg2NxTAGrvIrMYS

    • Peel off the tape holding the optical drive in place.

    • Remove the two 7.1 mm T10 torx screws.

  2. gvenxLP1tPRAaloL
    gvenxLP1tPRAaloL
    AF5144gIMnyUdrAB
    Kk5IyNKCdTZANpFD

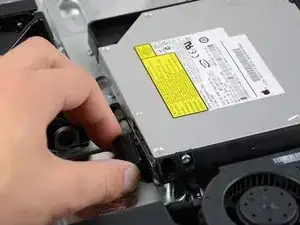

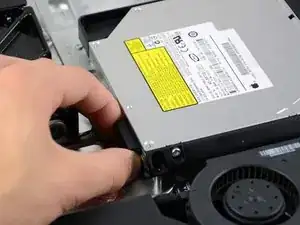

    • Firmly grab the optical drive connector and pull it straight out of the optical drive.

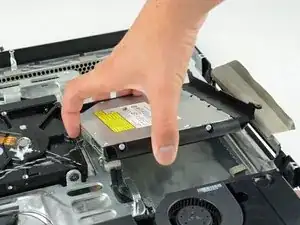

    • Remove the optical drive from the device.

    The optical drive connector is pretty firmly jammed into its socket. Using the spudger to ease it out made the process much easier.

    Peter Bull -

Conclusion

To reassemble your device, follow these instructions in reverse order.
