iHome IH11 Main Motherboard Replacement

Difficulty

Moderate

Steps

5

Time Required

No estimate

Introduction

This guide will show how to install a new mother board in the iHome. For help troubleshooting click the link to our troubleshooting page iHome IH11 Troubleshooting.

  1. VOWUbIhLwvXxlcRE

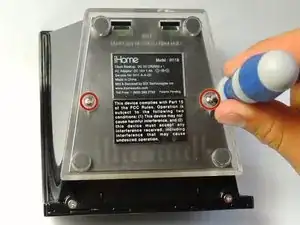

    • Unscrew the two 9.0 mm screws with a Phillips #1 screwdriver.

    • Remove the translucent bottom case.

  2. oSmdkP5EJomb5KGG
    oSmdkP5EJomb5KGG
    uAIZsATMdhOYAID3

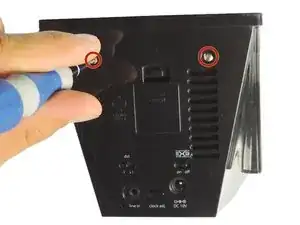

    • Remove the two Phillips #1 9.0mm screws on the back of the iHome.

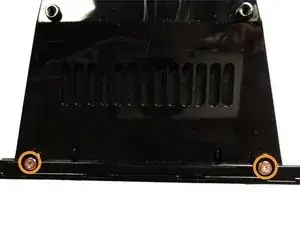

    • Repeat the previous step for the two 9.0mm screws on the bottom.

    • Carefully slide the back cover off. There are wires connected to the back cover.

  3. 6TA5hl6ZthTqWQlW

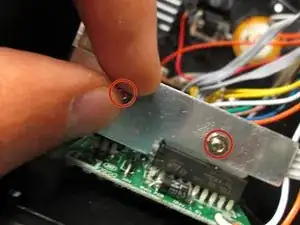

    • Remove the aluminum bracket by loosening the two nuts and removing the 8.0 mm bolts.

    • Pull the bracket out.

  4. 3Qfcxkn35sI1U3uL
    3Qfcxkn35sI1U3uL
    gCUEFCGIFk3p4J2K

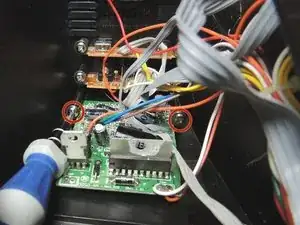

    • Remove the two 12.0mm screws that hold the motherboard with a Phillips #1 screwdriver.

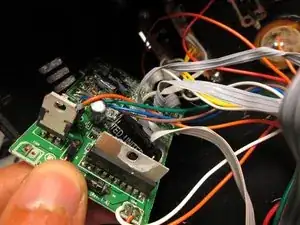

    • Slide the motherboard gently out.

  5. hwsnyS11IaCKxMYY

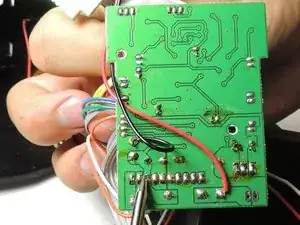

    • Solder each wire to corresponding input on the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
