Introduction
To remove the faceplate of your Xbox Duke controller and access the internal hardware, follow this guide. This guide is a prerequisite to all other Xbox Duke repair guides that require accessing internal components like the buttons, the potentiometers, motherboard, etc.
Tools
-
-

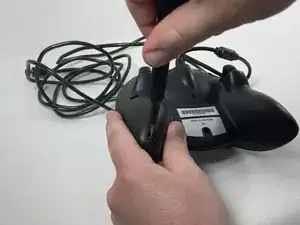

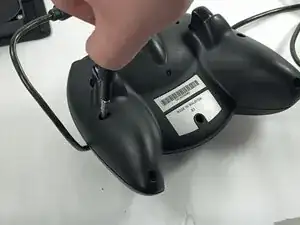

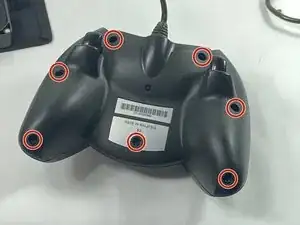

Remove the seven black 8 mm screws holding the two halves of the Duke together using a Phillips #1 screwdriver.
-
-
-

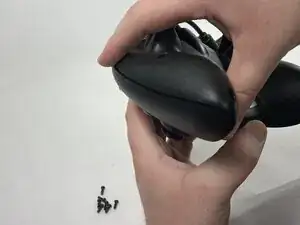

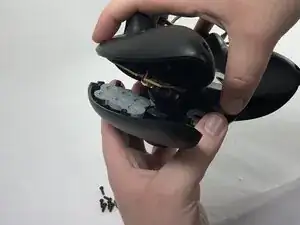

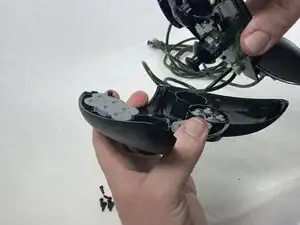

Remove the two halves of the Duke, placing the top plate face-down so the buttons don't fall out.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
