Wacom Cintiq 24HD Back Panel Replacement

Written By: Sydney Hosokawa

Comments: 0

Wacom Cintiq 24HD Back Panel Replacement

Difficulty

Easy

Steps

Time Required

5 - 10 minutes

Introduction

This guide shows you how to take the back panel off of the Wacom Cintiq 24HD. It is a prerequisite for other replacement guides for this device. You will need a Phillips #1 Screwdriver and a plastic opening tool.

Tools

Step 1

Unplug any cables from the USB, power, display or DVI-D ports by gripping the cord by the connector and pulling straight out of the port.
Unplugging the cables by pulling on the cord or pulling at an angle can damage the cable or connector.

Step 2

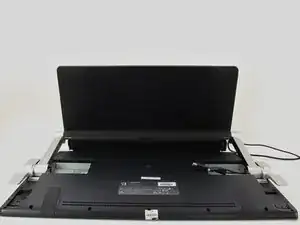

Place the device screen down on a flat surface.

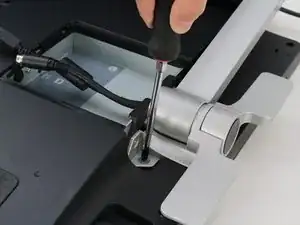

Remove eight 10mm Phillips #2 screws (four on each leg of the stand) by turning the screwdriver counterclockwise.

Step 3

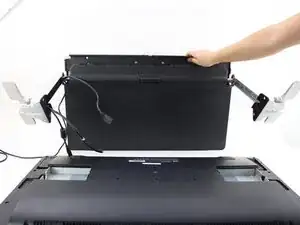

Lift the stand up and away from the rest of the device so the legs separate from the mounting plate.

Step 4

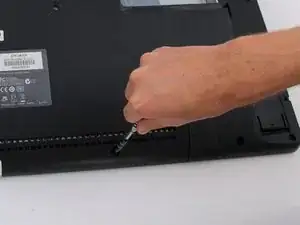

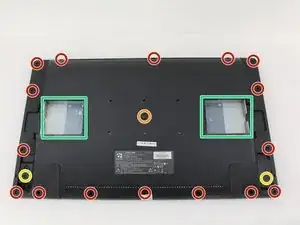

Remove eighteen 10.2mm Phillips #1 screws from the perimeter of the back panel by turning the screwdriver counterclockwise.
Remove one 11.9mm Phillips #1 screw from the center of the back panel.

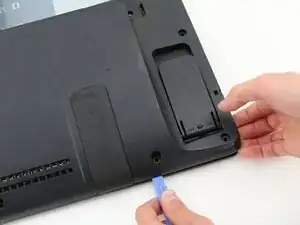

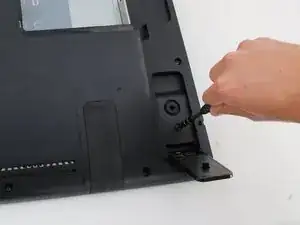

Remove two 10.2mm Phillips #1 screws from underneath hinged panels in the bottom right and left corners.
Our device does not include the cover panels for the USB, DVI-D, and power ports. You must first remove these cover panels shown in green in order to remove the back panel.

Step 5

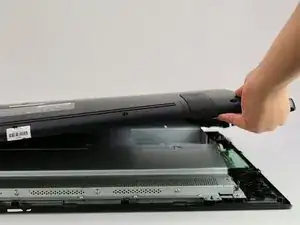

Lift the back panel up by a corner and insert a plastic opening tool in the gap.
Slide the tool along the gap around the perimeter of the device while lifting to unlatch the back panel.
The latches on the back panel will make loud clicking noises when opening.
Remove the panel by lifting it up and off of the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
