Toshiba Tecra 8200 RAM Replacement

Written By: Sally
  • Comments: 0
Toshiba Tecra 8200 RAM Replacement

Difficulty

Moderate

Steps

5

Time Required

15 minutes

Introduction

This guide demonstrates how to properly remove and replace a Toshiba Tecra 8200 RAM in order to preserve the function of the device.

  1. tlxTWZ26ETA5QQNy

    • Turn off the device and unplug the power cord.

    • To remove the battery, flip the device, so that the bottom is facing upward.

  2. Ui2u31SLRb65cy2m
    Ui2u31SLRb65cy2m
    FFpl2PYnn1duGkTG
    HPYrg1Mu1Bt25sOO

    • Slide the battery to the right side until you hear a click.

    • Carefully remove the battery from its compartment.

  3. nQC2OaKbJS2LromJ

    • Position device so the screen is face down.

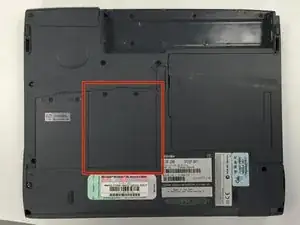

    • Locate RAM Panel.

  4. QAoSRPNtP5cOtfCS
    QAoSRPNtP5cOtfCS
    PqdmWWA5VccjcdIA

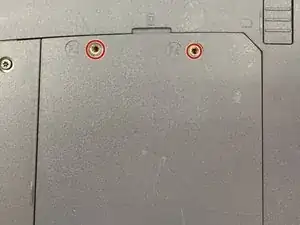

    • Remove two Phillips #00 screws labeled F4.

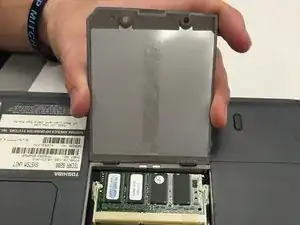

    • Remove panel.

  5. ILdGZMi1CttPQg1f
    ILdGZMi1CttPQg1f
    FtZImjVHEWqixKjj

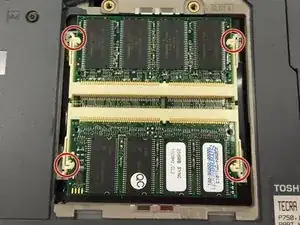

    • Pinch clips on each side of RAM chips to release.

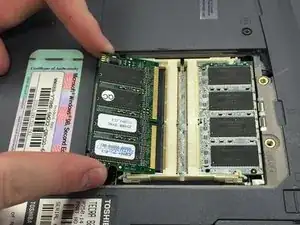

    • Gently remove RAM chips at a 45 degree angle. Use a plastic opening tool if RAM chips do not pop open.

Conclusion

To reassemble your device, follow these instructions in reverse order.
