Toshiba TECRA R940 RAM Replacement

Written By: Jack Dutton
  • Comments: 0
Toshiba TECRA R940 RAM Replacement

Difficulty

Easy

Steps

3

Time Required

10 minutes

Introduction

This guide would be useful for replacing broken RAM or upgrading the working RAM to make your Toshiba TECRA R940 run better.

This laptop has a comparatively easy procedure to replace RAM.

  1. HxbMheIQBDIUZJWN
    HxbMheIQBDIUZJWN
    AZwIXkTQVZgq6lDy

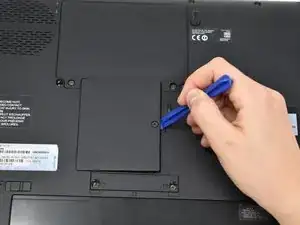

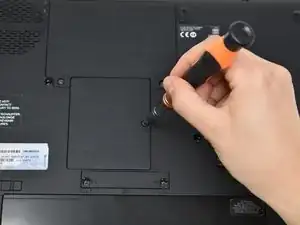

    • Unscrew the screw attached to the small back panel, and set the back panel aside.

    • The screw should not come completely out of the hole when unscrewed. If it does, do not be alarmed as it will still screw back in.

  2. EAYuIWwd6Mfy5JaP
    EAYuIWwd6Mfy5JaP
    PZE5kxXnQMQSJRHO

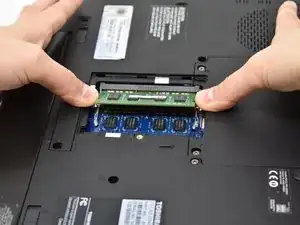

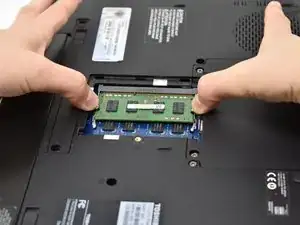

    • Pull the metal brackets away from the RAM card to unlock it from the slot, then pull the RAM card out.

    • When handling the RAM cards try not to touch the gold colored metal at the base, as this could cause the cards to malfunction. Best practice is to try and hold the cards by the edges.

  3. DNBO5vLDK1lHOaLe
    DNBO5vLDK1lHOaLe
    1NVhDVyEGVDlwi4Y

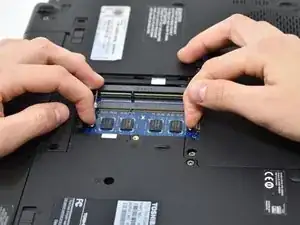

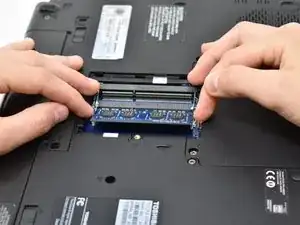

    • Repeat the previous step of pulling the RAM card out for the second card, but using the lower brackets.

Conclusion

To reassemble your device, follow these instructions in reverse order.
