Introduction
If your laptop is booting to the BIOS screen and it is not because of a faulty hard disk drive, then use this guide to replace the RAM sticks.
Tools
-
-
Hold the switch on the left and pull the battery up towards you, using the marked tab, to take it out.
-
-
-

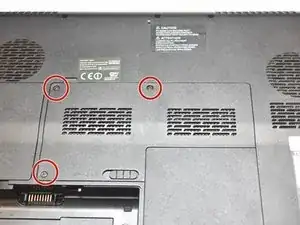

Use a JIS #0 screwdriver to remove the three 4.8mm long screws that secure the RAM cover.
-
Lift the cover off using the indent for leverage.
-
-
-

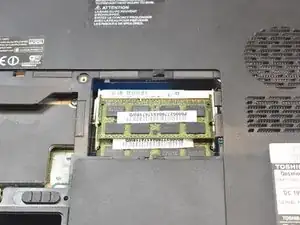

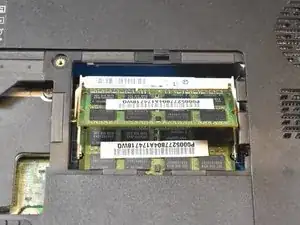

Use a spudger or your fingers to push the RAM brackets outwards until the RAM pops up.
-
Once the RAM stick is angled up, pull it out along the angle.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
