Introduction
If your keys aren’t working, then use this guide to help you replace the keyboard.
-
-

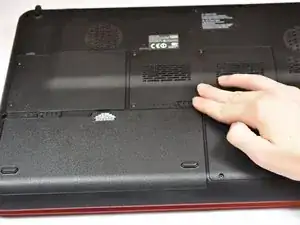

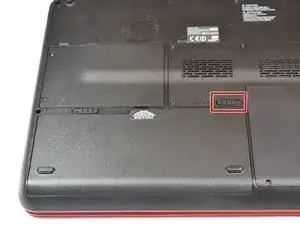

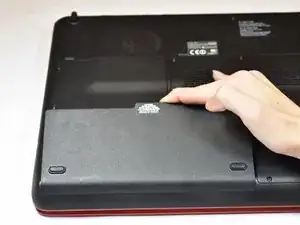

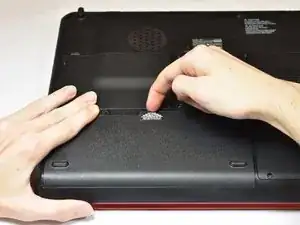

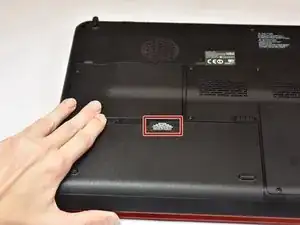

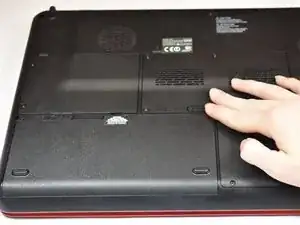

Hold the switch on the left and pull the battery up towards you, using the marked tab, to take it out.
-
-
-

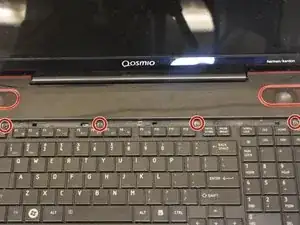

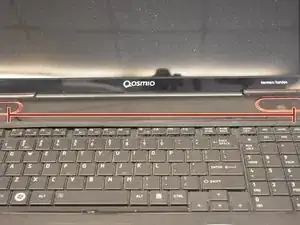

Locate the plastic bar at the top of the keyboard.
-

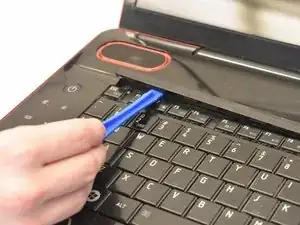

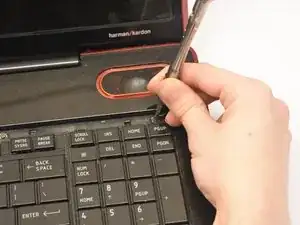

Wedge a plastic opening tool under the bar and pop the bar out.
-
-
-
Lift the keyboard to get to the plastic ribbon underneath.
-

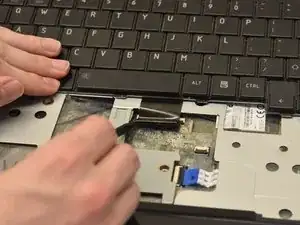

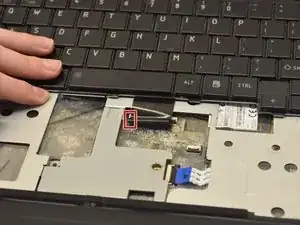

Using the Spudger, press a small tab on the left side of the ribbon. Then pull the ribbon out from the casing.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
