TomTom VIA 1530 TM Screen Replacement

Written By: Jennifer Zakaria

Difficulty

Moderate

Steps

Time Required

20 minutes

Introduction

The TomTom touch screen can stop working or stop responding altogether. This guide will show how to properly remove it.

Position the device so that the underside is facing up.
Tilt the EasyPort Mount slightly upward and rotate it counterclockwise 180 degrees from the initial position.
Firmly grab the EasyPort Mount and remove it.
If it does not dislodge easily, gently twist the EasyPort Mount, applying increasing pressure until it does.

Turn the device 180 degrees so the screw in the EasyPort Mount compartment is on top.
Remove the 2mm screw beneath the EasyPort Mount compartment with the Torx T-5 head Screwdriver.

Flip the device over so that the screen is facing up.
Wedge the plastic opening tool between the top and bottom of the device's frame, gently sliding it around the outside edge.
It may be easier to start at one of the corners.
The gold ribbon cable connecting the screen to the motherboard is fragile and tears easily.
This specific device's ribbon cable is torn.

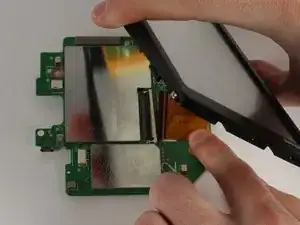

Carefully slide the screen forward, revealing the lower portion of the motherboard.
Remove the 3.6mm screw using the JIS #00 Screwdriver.
Rotate the device 180 degrees, carefully slide back the screen, and remove the remaining two screws.

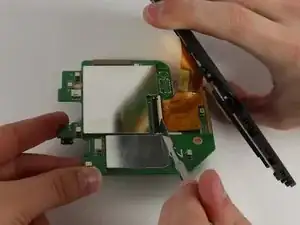

Wedge a spudger between the white plastic latch and the black connection port, disconnecting the gold ribbon cable.
Slide the gold ribbon cable out of the port.

Maybe add the picture of the motherboard and screen separated

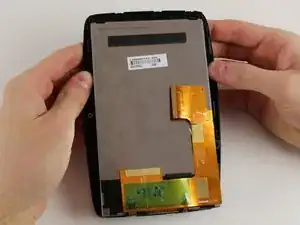

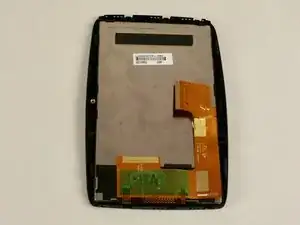

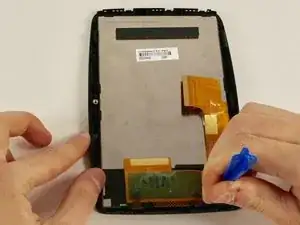

Use a plastic opening tool to unlatch the screen from its case.
We recommend starting on the side with the gold ribbon cable as the latches are more tricky.
Unlatch the screen corner by corner instead of an entire side at one time.
The tearing sound is the adhesive holding the screen to the case. It will re-stick when you put the screen together.

It may be smart to get rid of the first photo and add a photo with the screen and case separated

Conclusion

To reassemble your device, follow these instructions in reverse order.
