TiVo Premiere XL4 Power Supply Replacement

Written By: Frances Prewitt
  • Comments: 2
TiVo Premiere XL4 Power Supply Replacement

Difficulty

Easy

Steps

8

Time Required

10 - 15 minutes

Introduction

The power supply keeps the TiVo fully functioning with power. if some component is bent or needs replacement then the supply may need to be fixed; here is how to replace the power supply.

  1. quYMjrMTceAXEDQB

    • Power down the TiVo Premiere XL4 by detaching the power cable from the unit and power source.

    • Allow the box to cool for at least 5 minutes before proceeding to the next step.

  2. pOSY461K2BKSbUMY
    pOSY461K2BKSbUMY
    APR2YMiRjeWJeOeU

    • Remove the four 80 mm T10 screws from the back of the TiVo box using theTorx screwdriver.

    After removing these 4 screws, the cover still does not come off easily. It appears to be bound on the sides by some other means.

    glendon144 -

    There are metal latches on the sides that have to be carefully released by a spudser or a flathead screwdriver to enable the top to be removed.

    glendon144 -

  3. 6RBHQM2L3OGcXOsL

    • Take the outer casing by sliding the top of the box off of the component carefully, making sure not to damage the surrounding components inside.

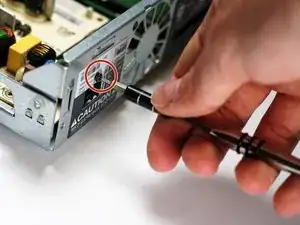

  4. fddAlkU5EjrMiEPr

    • Remove the 140 mm T8 screw from the back of the TiVo premiere XL4 box holding the power supply in place using a Torx screwdriver.

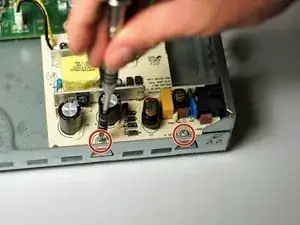

  5. WuEQRmiEmrHHmVQZ

    • Remove the two 80 mm T10 screws from the power supply using a Torx screwdriver.

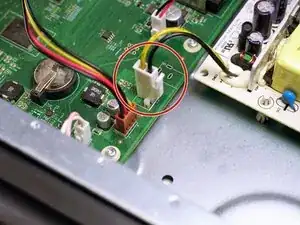

  6. tFfwSm6PSCOFxtwZ

    • Remove the power cable from the motherboard by gently pinching the connector.

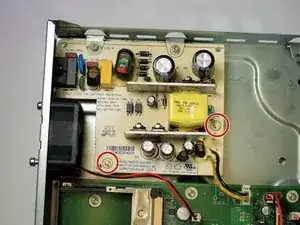

  7. vwBnvw6e4ROqNvQo

    • Pinch the two plastic plugs and lift the power supply to detach the plugs from the board.

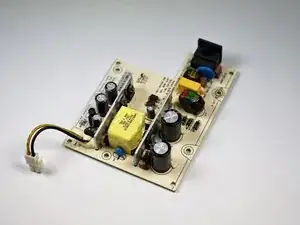

  8. RxDACUsiE4t2JeIJ

    • Take out the power supply unit.

Conclusion

To reassemble your device, follow these instructions in reverse order.
