Thymio II Disassembly

Written By: Alexandre Aires Viegas
  • Comments: 0
Thymio II Disassembly

Difficulty

Easy

Steps

10

Time Required

10 - 20 minutes

Introduction

In this disassembly, we’ll take a closer look at the Thymio II’s internal components and how you can completely remove every part of it. Whether you're looking to repair, modify, or simply understand how this little robot is built, this guide will walk you through every step of disassembly.

  1. Z6trudgqW3GCdvHB

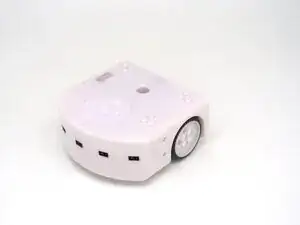

    • The Thymio II is composed of a top and bottom cover.

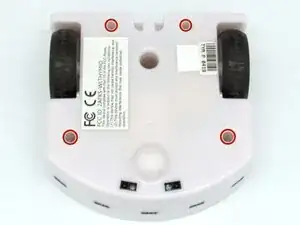

  2. MJyJchxHJmTSvvxy

    • The first step is to remove the four M3x10 Phillips screws from the bottom of the Thymio chassis.

  3. uEAZbdy3ARyT2SCm
    uEAZbdy3ARyT2SCm
    rcUUY1tWIi5DP4jJ
    ynNxuig6rLUEOkNb

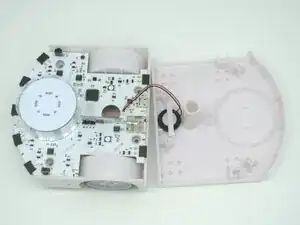

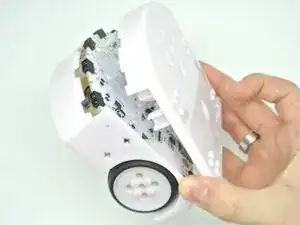

    • Once the screws are removed you simply need to turn the thymio around and pop the top part of the case.

    • Be careful as the speaker is still connect to the PCB so don't pull too hard.

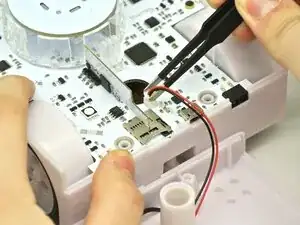

  4. slLcZKolbiVvlajs
    slLcZKolbiVvlajs
    waC6uDmFwTfZrmZx
    YGmwPlBLsX6daV6o

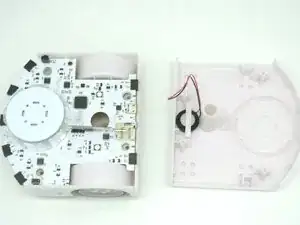

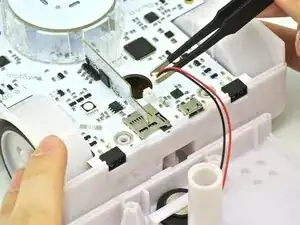

    • Now grab some tweezers or with your fingers disconnect the speaker cable. You should now have two seperate pieces, the top case and the bottom one.

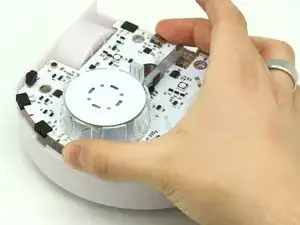

  5. KwR3WYUHPAhoZEdl
    KwR3WYUHPAhoZEdl
    BEbkirR4mSFtPkZU
    pqkPRkpjVHatg2hP

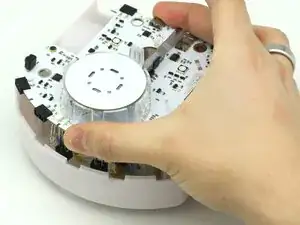

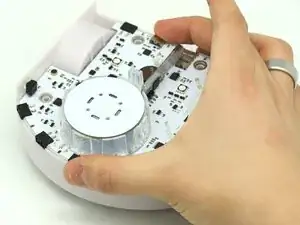

    • To remove the PCB, take it between your hands or with one finger in the pen hole.

    • Tilt and lift the PCB.

    • Be careful as the battery and motor cables are still attached.

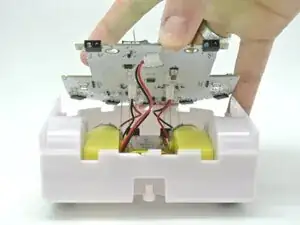

  6. Ety1njRXiTbiySOP
    Ety1njRXiTbiySOP
    KWJFfIOlxNldPH1r

    • After lifting the PCB, carefully remove the cables one by one with tweezers or your fingers.

  7. wblEBPoRpCyj6FMy
    wblEBPoRpCyj6FMy

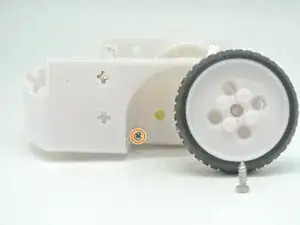

    N5VDeOUHpfrGhwpO

    • Now that the PCB is out of the way, we can see the motors and the battery.

    • First we need to remove the main M2x8 Phillips screw that holds the wheel.

    • This will reveal the M3x20 Phillips screw that holds the motor to the chassis which needs to be removed in order to remove the motors.

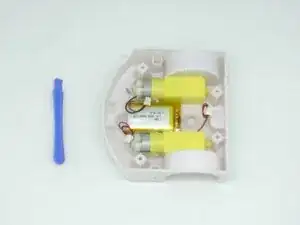

  8. D1KeCafjdxetNwye
    D1KeCafjdxetNwye
    lBP1rcTd2uwcR2lO
    Y3flZyPcFq1EGBR4

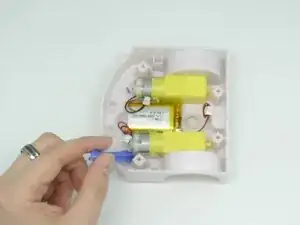

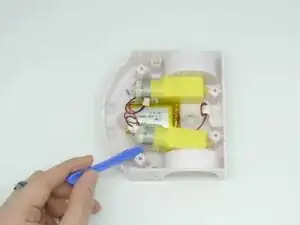

    • Now that the motors are free, we can simply take a prying tool and twist the motor free.

    • The motor axle is still sticking out the chassis so don't force it out if you feel some resistance.

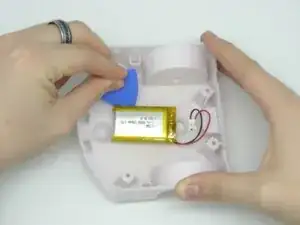

  9. rOpYaJBREn5Xymvu
    rOpYaJBREn5Xymvu
    NlYelPGloKkDVgZP

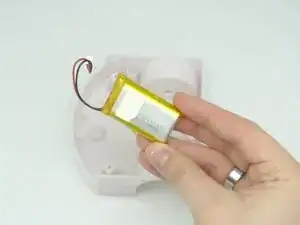

    • The battery is glued to the chassis with an adhesive pad. To remove the battery, use a prying tool to get under the adhesive pad and remove it.

    • Only use the prying tool on the adhesive pad, not the battery itself.

  10. gCU5gFrky2kYZaw1

    • This concludes the Thymio II assembly as shown here with all its parts.
