ThinkPad X1 Carbon Fan Replacement

Written By: Mike
  • Comments: 3
ThinkPad X1 Carbon Fan Replacement

Difficulty

Moderate

Steps

6

Time Required

30 minutes

Introduction

You will learn how to open the ThinkPad X1 Carbon and replace the CPU Fan

  1. SbMuoQvru6jpE5iC

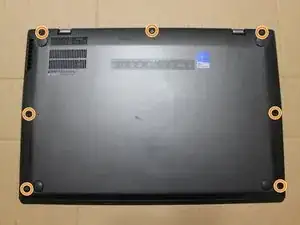

    • Loosen the seven cover screws. They will not come out.

  2. kjABT1CIcp4SrFgV

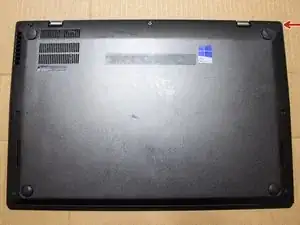

    • Use a spudger to pop loose the cover and slide it off.

  3. UQ5wJkVuECHcr5QC

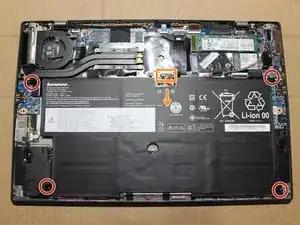

    • Only use plastic to remove battery connector

    • Gently remove battery connector by pushing with the spudger in the direction of the arrow.

    • Remove four screws holding battery in place and remove battery.

    • The 4 perimeter screws also hold the tow audio speakers in place. And there is a 5th screw dead center of the battery. The battery cable is not easy to remove, nor is it easy to re-connect.

  5. fWn1YW213nhpZKwB

    • Use your spudger to open the connector in the direction of the arrow. Carefully remove the ribbon cable

    • These connectors are very delicate. Use care when removing cables.

    Hi! Does anybody know where to get the little black clip that fixes the fan cable to the connector? Unfortunately I broke it when I removed the fan. Any other suggestions on how to fix the cable are appreciated.

    Jupp NN -

  6. Qqttx6fiEGSFVIjC

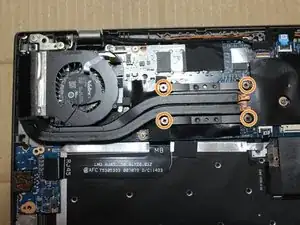

    • Loosen screws and pull fan up and out of the case.

    • Be sure to apply heat sink paste when putting fan back on CPU

    Which generation X1 Carbon is this? I have a 1st Gen and a 5th Gen, neither match this layout. Please updated with the Generation in the title. Thank you.

    Stanislav Valov -

Conclusion

To reassemble your device, follow these instructions in reverse order.
