Texas Instruments TI-30Xa Battery Replacement

Written By: Chris L
  • Comments: 37
Texas Instruments TI-30Xa Battery Replacement

Difficulty

Easy

Steps

5

Time Required

10 minutes

Introduction

This guide will show, step by step, the battery replacement for the TI-30Xa scientific calculator.

  1. YnlNCcCQGA5USRNP

    • Here's the fully assembled TI-30XA calculator.

  2. n4J1qOsSMKXORUKw
    n4J1qOsSMKXORUKw
    kmNnqSE6Sq25vdQS

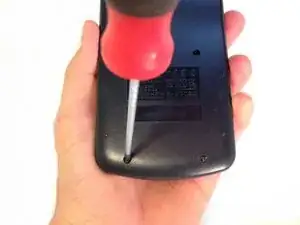

    • Locate the six screws on the back of the calculator.

    • With a Phillips #0 screwdriver, loosen and remove the screws.

    It is a #0 Phillips. I tried a #1 screwdriver and a DeWalt #1 bit. Neither worked.

    Eric Scott Johanson -

  3. sHhbNai6nXIGEJJK
    sHhbNai6nXIGEJJK
    5Rvc2ZXQx4uyblW2
    ERZtIdQOXYCBCpcT

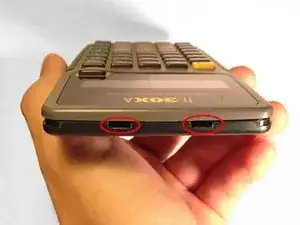

    • Find the two notches at the top of the calculator.

    • Insert a flat-head screwdriver into one of the notches and carefully pry open the top end of the case.

    • Locate where the case is still attached at the sides.

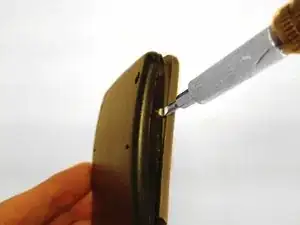

    • Insert the flat-head screwdriver into one side where the gap has widened.

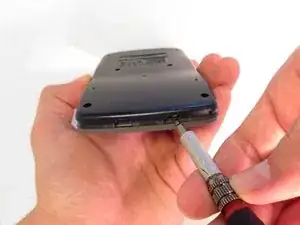

    • Now gently pry apart the sides of the case.

    • Prying only one side will release the other side as well.

  4. CtQQUi5NPL12NTU4

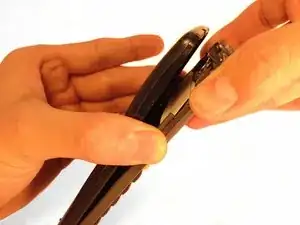

    • Now separate the two panels from one another.

  5. Havp2OE3ZmuDthBp
    Havp2OE3ZmuDthBp
    vpmEOg31EuDgBdsF

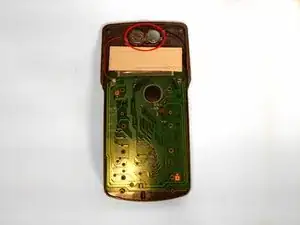

    • The two LR44 batteries are located at the top.

    • Slide the flat-head screwdriver underneath each battery and they will easily pop out.

    Positive side of both batteries should face 'UP'/away from the circuit board

    Chris Wisdom -

    When will you know tht the battery has to be change on the TI30Xa

    Sergio Polanco -

    when the display gets really dim

    Ed Pereira -

    In Step 3, it might be helpful to explain that there are retainer tabs on either side of the case to focus on the release. Maybe add the red ovals as to their location in the graphic (You can just see it in Step 4.

    Otherwise, great post! Thanks!

    Paul other -

    There is a note printed on the circuit board: “Short the reset pad after replacing batteries”.

    Harvey Riddle -

    For some reason my calculator only shows half the number when I type it. What do I do with that?

    Some person -

Conclusion

To reassemble your device, follow these instructions in reverse order.
