Introduction
Make sure you can explore the Xplod very well.
Tools
-

                  -
            Press down the release button on the bottom left corner of the face plate.
-
            Then remove the face plate carefully.

-

-

                  -
            Using the Phillips #0 Screwdriver, unscrew the 3 screws (length - 7.5mm) on the front of the device.

-

-

                  -
            Using the Phillips #1 Screwdriver, unscrew the 2 thick screws (length - 7.69mm) located on both sides of the stereo.
-
            Remove side-metal plates gently.
-
            Use the Heavy-duty Spudger, insert the flat end under each of the black flaps indicated in the picture. Use leverage to pry and pop them loose.

-

-

                  -
            Using the Phillips #0 Screwdriver, unscrew the 1 gold screw (height - 7.47mm) on the top of the stereo.
-
            Lift off the top plate.

-

-

                  -
            Using the Phillips #0 Screwdriver, unscrew the 8 gold screws (length - 9.26mm), located on the back side of the stereo.
-
            Using the Phillips #0 Screwdriver, unscrew the 2 black screws (length - 13.27mm), also located on the back of the stereo.
-
            Using the Phillips #0 Screwdriver, unscrew the 1 gold screw (length - 9.3mm), located on the bottom of a hole as noted in pictures (2) and (3).

-

-

                  -
            Using the Phillips #0 Screwdriver, unscrew the 2 gold screws (length - 7.34mm) found on both sides of the stereo.

-

-

                  -
            Grip the top portion of the stereo, where the CD-Drive is located, and gently pull up to release it, but you will not be able to lift it all the way out.
-
            Grab the two tabs located near the back of the stereo, and gently pull the CD-drive front the rest of the device.

-

-

                  -

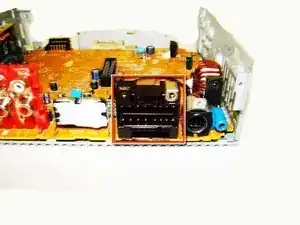

            Remove the power supply on the circuit board. Please follow the iFixit soldering guide to assist you.

-

To reassemble your device, follow these instructions in reverse order.
