Sony VAIO PCG-F360 Single Key Replacement

Written By: Hannah Millea
  • Comments: 0
Sony VAIO PCG-F360 Single Key Replacement

Difficulty

Easy

Steps

5

Time Required

5 minutes

Introduction

  1. JN5TB5BPqAX1Tfvd

    • Position the laptop screen-side down as shown.

    • In this position the battery housing will be located on the right hand side.

  2. dtcyb1p6eSrCuJ2H

    • Lift the panel up and then out to gain access to the battery.

  3. CG6TkfRDIGbvnIEc

    • Use the indentations to pull the old battery out.

  4. CpEQxSBCyQnlUCee

    • The battery is now removed and it is safe to move on to uninstalling other components.

  5. VIQab35AeRkNX2JS
    VIQab35AeRkNX2JS
    BplUY5xK4AxVgDaQ
    bc2saSoMLpK2siAm

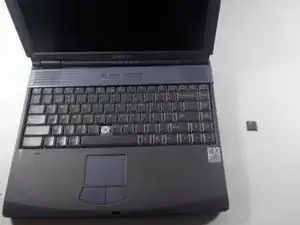

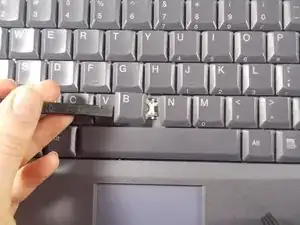

    • Use the pludger to pop off the key by prying under it.

    • You now can clean and replace the key.

Conclusion

To reassemble your device, follow these instructions in reverse order.
