Sony ICF-CS15iP Disassembly

Written By: Adrian Lopez

Comments: 2

Difficulty

Moderate

Steps

Time Required

40 minutes - 3 hours

Introduction

This is a complete tear down of the Sony ICF-CS15iP

Step 1

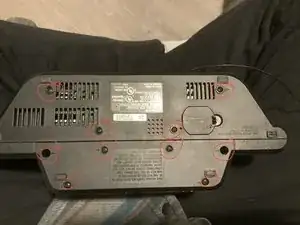

All of these damned screws are approx. a PH1 size.

Step 2

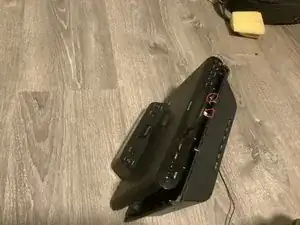

Pull on the back to ease it off, and there will be some wires that will need to be disconnected. (Green circled wire not necessary to remove but recommended)

Step 3

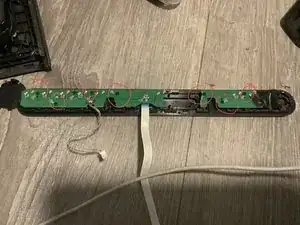

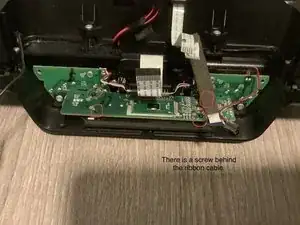

Unfasten the 4 screws holding in the board.

Step 5

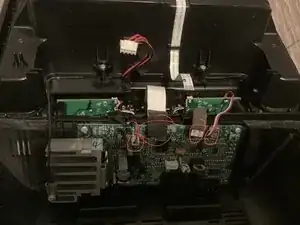

Remove the following screws and be careful with the dock connector, as it has springs that can fly to oblivion.

Step 7

I chose to eat pretzels, you can have a 10 course meal prepared by Gordon Ramsay

Step 8

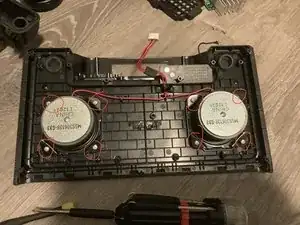

These are some good 4 ohm 5 watt speakers.

Step 9

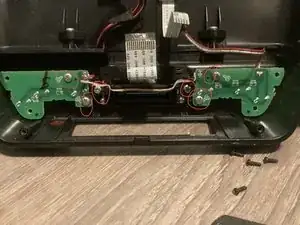

My specific board has some damage from the previous owner, and I only made it worse lol.

Step 10

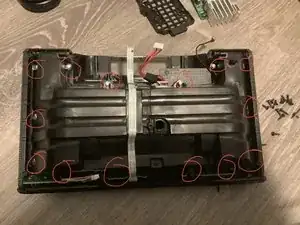

This is definitely all the screws that need to be unfastened.

Step 11

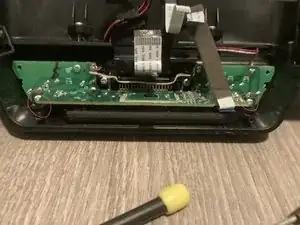

I used a PH1 and PH0 screwdriver.

Conclusion

To reassemble your device, follow these instructions in reverse order.
