Sony Ericsson Xperia Play LCD Display Replacement

Written By: ZFix
  • Comments: 1
Sony Ericsson Xperia Play LCD Display Replacement

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

If your LCD display is broken or not working in this manual we will guide you how to replace it.


Please SUBSCRIBE to my channel ツ

  1. Iw2PZEnoqtSNSQUN
    Iw2PZEnoqtSNSQUN
    iGyqfd134EoCGQ1T
    6MFiaoBSgpEs5hBj

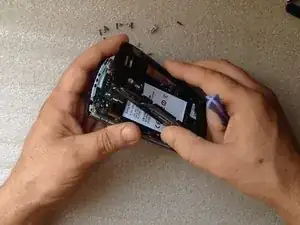

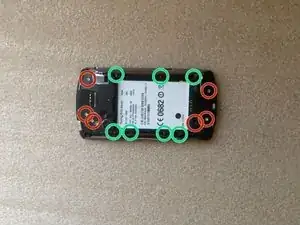

    • Remove the battery cover and the battery.

    • You have the 6x silver screws and 7x black screws and you can remove the rear bezel.

  2. JLVorqoieCDRykVO
    JLVorqoieCDRykVO
    EOMPmTIVSBPJOhhQ
    QZK1wMNVMRCtkaRg

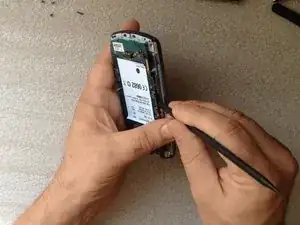

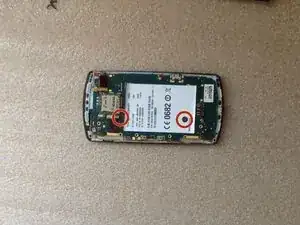

    • By using a plastic tool, disconnect the main flex cable connector. Be careful, near to the connector there are many small elements.

    • Disconnect the gaming keyboard flex cable.

  3. 5jk2h3MtNP1XEtJF
    5jk2h3MtNP1XEtJF
    ThdjnQF6Xk3xEsjK

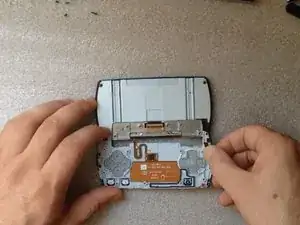

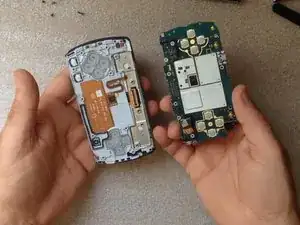

    • Remove the motherboard and the gaming keyboard.

  4. ScP6ShFb4gJTvWS6
    ScP6ShFb4gJTvWS6
    vpyMpekNIbpnEpAR
    Q1oiZPOmnJZtKlOv

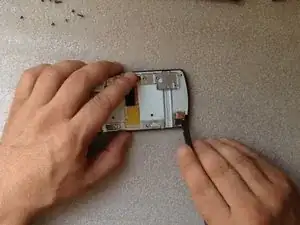

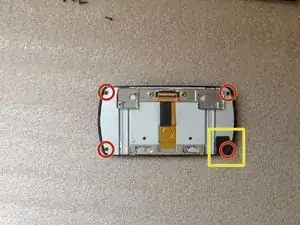

    • Unscrew the 4x black screws.

    • Remove the black sticker on the corner and disconnect the touchscreen flex cable.

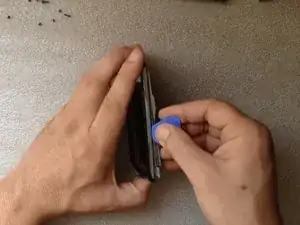

    • Disassemble front bezel.

  5. jkwCCbTCXbxmb321
    jkwCCbTCXbxmb321
    OQa4sNuFPEp5TjNZ
    yoKSLKQte4nUmSnT

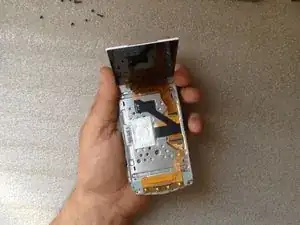

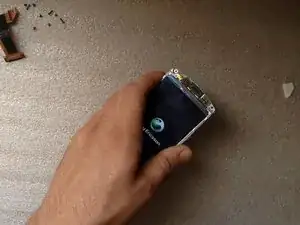

    • Use the thin side of a plastic tool to separate the LCD display from the base bezel.

    • Now you are ready to install the new spare part.

    • I prefer to test the new spare part before the full assembly.

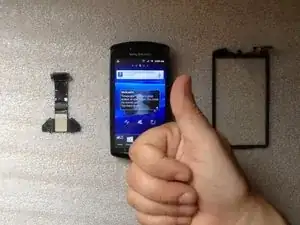

  6. P6XlkrXZBXZJfTZU
Conclusion

To reassemble your device, follow these instructions in reverse order.
