Sony Ericsson T68i Logic Board Replacement

Written By: Tim Dascomb
  • Comments: 0
Sony Ericsson T68i Logic Board Replacement

Difficulty

Moderate

Steps

8

Time Required

No estimate

Introduction

This guide will assist you in removing the logic board from your Sony Ericsson T68i.

  1. SFIUTLoQMnl3kkvU
    SFIUTLoQMnl3kkvU
    kIMekXFl6EQ4bMHL

    • Remove the battery from the back.

  2. TbIkrZRTKinSZ4Rb
    TbIkrZRTKinSZ4Rb
    6JaQDKl5DwTcStbd
    mSCOAabTbRShDpOs

    • Pry off the plastic cover from the top with a thin plastic shim, then remove it from the two bottom clips.

    • Do not bend it too far down, or else you risk breaking the two bottom clips.

  3. fxoUvKUJOhiHS2eU
    fxoUvKUJOhiHS2eU
    Yq5CEnJeQ11H1TSJ
    LwTAxHHlBlvK3DGN

    • Unscrew all four Torx T6 screws.

    • Keep in a safe place.

  4. TNbCNMlkc4J3e21g
    TNbCNMlkc4J3e21g
    NsulPge2OtI3EDfE
    WxegWHoKvCgBlcss

    • After removing the screws, the two halves will separate. If not, then pry them gently apart.

  5. bLcYtsAjus1tALGN
    bLcYtsAjus1tALGN
    Q2nZ1SU1HJqZtbhB
    2sfSUmSQQYO4laHe

    • Remove the circuit board and screen from the device.

    • Use your T6 to remove the 4 screws.

  6. KIcM4cVCOZfqOELT
    KIcM4cVCOZfqOELT
    FZWltHjMN5Gf6aLN
    VEjRsKvOWYjIfif4

    • Remove the board and screen.

  7. kRQDowZGKXy3QqLY
    kRQDowZGKXy3QqLY
    Z3GZJwXOSRXVATKZ
    eIx2Liu1fhoYZijP

    • Carefully remove the plastic clips holding the screen on the board.

  8. 2PJULQmBytQVENVx
    2PJULQmBytQVENVx
    OLoxOuhyyUPeSfsJ
    K5Vd5bPVuRZvbBPq

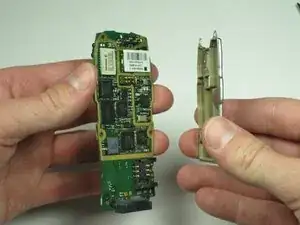

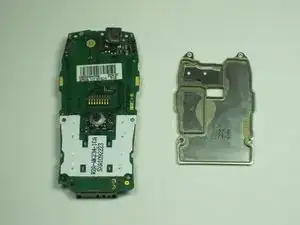

    • Remove the plate protecting the more delicate processing parts from the logic board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
