Sony Cyber-shot DSC-W580 lens disassembly.

Written By: Adam Suchý
  • Comments: 0
Sony Cyber-shot DSC-W580 lens disassembly.

Difficulty

Moderate

Steps

10

Time Required

No estimate

Introduction

Complete disassembly of Sony Cyber-shot DSC-W580 lenses.

  1. rZcAoTABZlXL1eRS

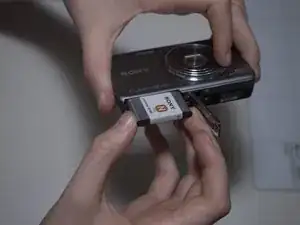

    • Remove battery and SD card

  2. VOJElpbl4oyUaZOh
    VOJElpbl4oyUaZOh
    gQsdNyLXJgm4XNJc
    HhImuQ6GFnIccBlS

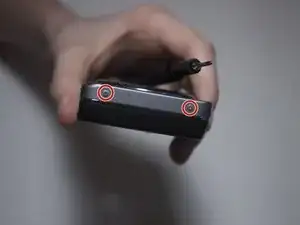

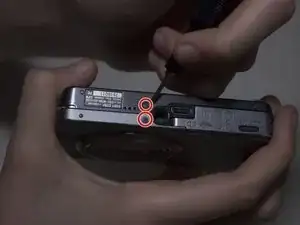

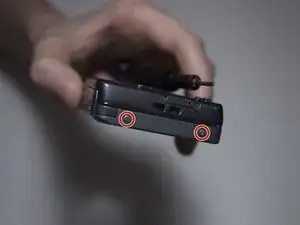

    • Unscrew six screws holding the cover.

  3. DDNZVRA2XMBDB1Gk
    DDNZVRA2XMBDB1Gk
    eNvXETAai4YwbIB2

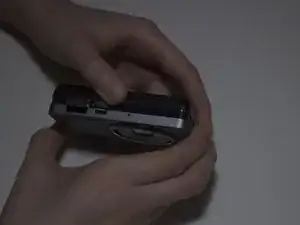

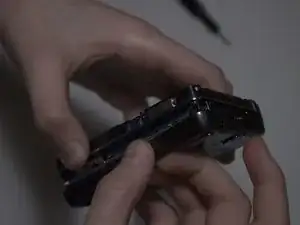

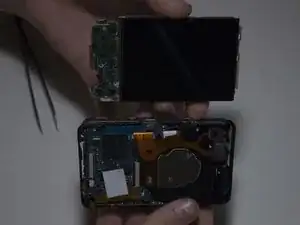

    • Remove the cover

  4. xlCtyIHaYCxCvBOQ
    xlCtyIHaYCxCvBOQ
    Pmp4vBVWfevQCCFO
    eGU3iRSVBqULZnwB

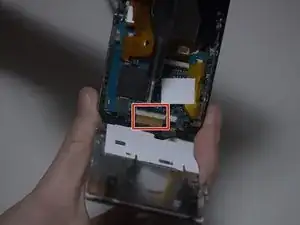

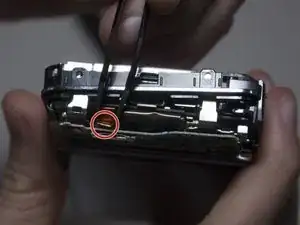

    • Disconnect the two ribbon cables connecting the monitor

  5. qM6uGACjjhPjlBcL

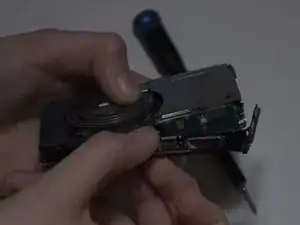

    • Remove top buttons.

    • Be careful, this part can be easily broken.

  6. 5Po6kwBl2dl2AsW4

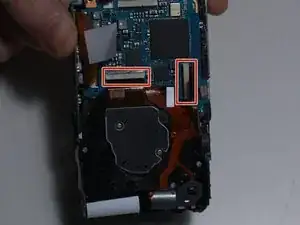

    • Disconnect two ribbon cables connecting the lens and sensor.

  7. odDfYgxi2Ed6hHOF
    odDfYgxi2Ed6hHOF
    rp3S6BRSecMjNDVb
    qcoTBe5K3APWqJQN

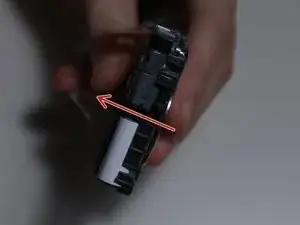

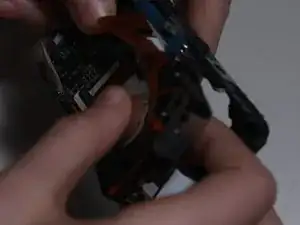

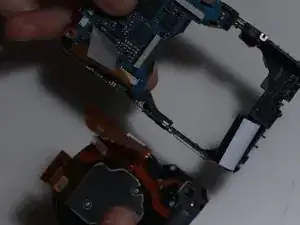

    • Apply a bit of force on the front of the lenses until they pop up.

    • Now you can safely remove them.

  8. BGiv1bsLpnTSUEEY
    BGiv1bsLpnTSUEEY
    C1Z2Y5VZm2DLJ21N

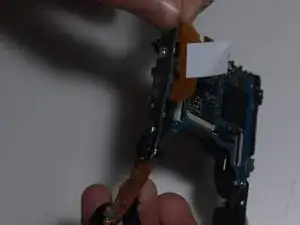

    • Disconnect ribbon cable connecting the flash with the motherboard.

    • and remove the flash.

  9. hBkR6AUJDpXyNGPX

    • Now remove the capacitor.

  10. SuxbKyqmBLRXS1Yq
    SuxbKyqmBLRXS1Yq
    DDBlIrM2Q16lvbJ5

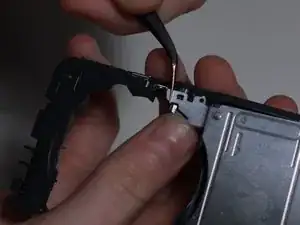

    • Lift these two pieces and slide the metal cover off.

Conclusion

To reassemble your device, follow these instructions in reverse order.
