Sony Clie PEG-SL10 Motherboard Replacement

Written By: Emily
  • Comments: 1
Sony Clie PEG-SL10 Motherboard Replacement

Difficulty

Moderate

Steps

11

Time Required

20 - 30 minutes

Introduction

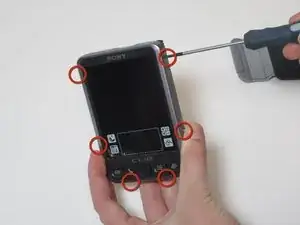

  1. JWmjNrQU1kRHFNtO

    • Remove the six screws holding the case together.

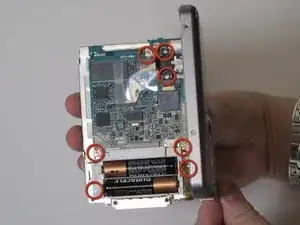

  2. 62aUb5CUJSRBErGk

    • Remove the seven screws holding the motherboard to the device.

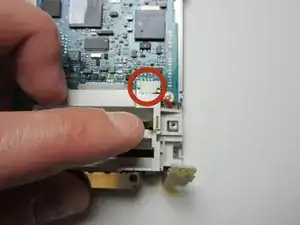

  3. GIXhpMSZaAbYFxET

    • Unclip the battery harness power cable from the motherboard.

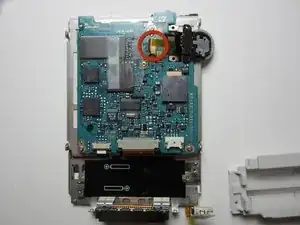

  4. ClDIMsyGf6GXB5vM

    • Unclip the scroll wheel power cable from the motherboard.

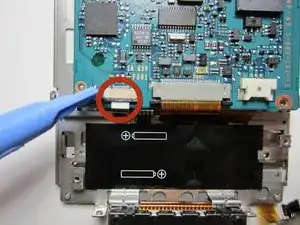

  5. BwymGwbt13sJnjR6

    • Pull the left clip to remove the cable.

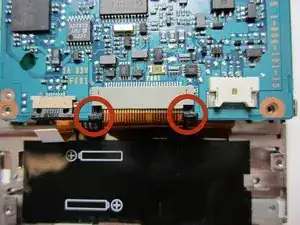

  6. MNSHgZlkCZXEqHQj

    • Pull out the two clips from the center to remove the power cable.

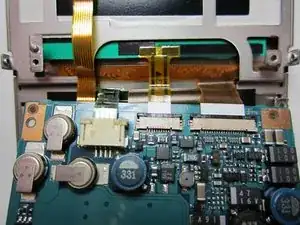

  7. mZWl1urD6LVZxZyS

    • Rotate the motherboard toward you to show the cables on the opposite side of the motherboard.

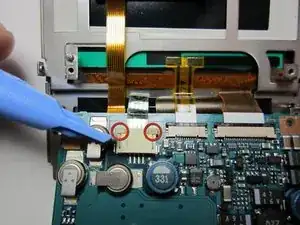

  8. FvhbSaWOF2KOX51C

    • Extend both sides of the left clip to remove the power cable.

  9. XWS1CtJZLu5TtxGE

    • Pull out the center clip to remove the power cable.

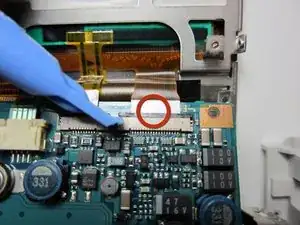

  10. HKhiuspCBAqmCfEs

    • Pull the right clip out to remove the right cable.

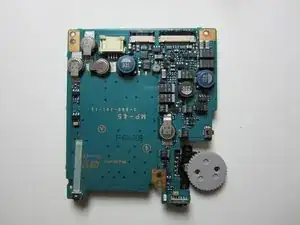

  11. oGkcRZK6btd4UHIS

    • The motherboard is removed. To install the new motherboard, follow the directions in reverse.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Emily

Member since: 18/10/11

3 Reputation

One comment

I have a full reset whenever I take the battery out to recharge it. Given that all replacement motherboards will be as old as the unit, is there anyway to fix the board (I presume it’s a capacitor or super cell that keeps the charge long enough to swap the battery over normally?). The three cells seem to be soldered onto the board, but I presume could be replaced?

Anyone know of a way to fix this?

Benjamin S. Leveritt -
