Introduction
If you need to access the internal components of your Sony BDP-BX320 Blu-ray player, follow this guide to remove the top case.
-
-
Power off and unplug the device from any power source.
-
Place the Blue-ray player on a clean, stable surface.
-
-
-

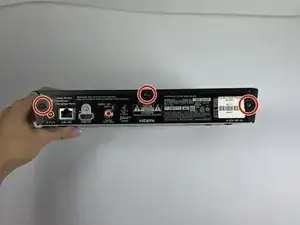

Use a Phillips #1 screwdriver to remove the three 8.3 mm screws on the back of the device.
-

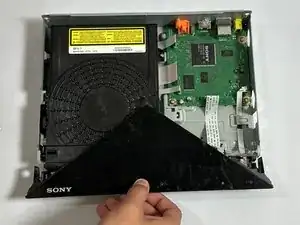

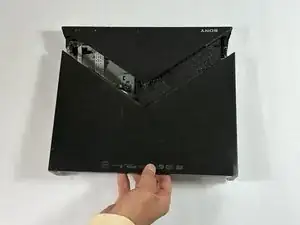

Slide the back section of the top case off the device.
-
-
-

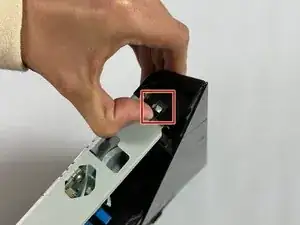

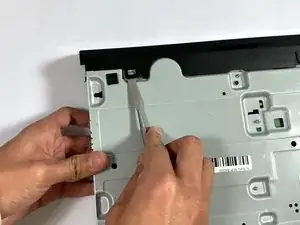

Use your hands or a metal spudger to gently disconnect the case from the small tabs on the bottom and sides of the device.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
