Siemens EQ6 Service Menu

Written By: VauWeh
  • Comments: 6
Siemens EQ6 Service Menu

Difficulty

Moderate

Steps

2

Time Required

No estimate

Introduction

The service menu is useful for testing components and sensors. Furthermore, a lot of statistics and errors are displayed.

''These instructions can also be used with other Siemens/Bosch models - the models have a similar structure.

  1. DQOFYpsAByFIo5Wh
    DQOFYpsAByFIo5Wh
    Us52FsvBR35lgtyW
    ew2IHnEr2IvkIGr2

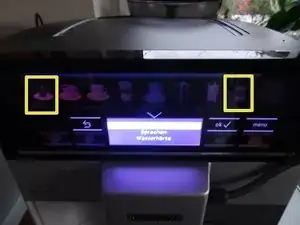

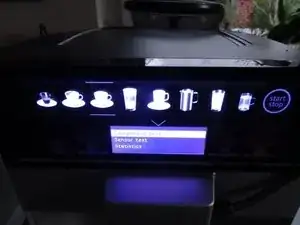

    • Turn the machine on normally.

    • Touch the "Menu" field, it is slightly darker. The settings menu for language, water hardness, etc. appears. But that's not the service menu yet.

    • Touch the first (espresso) and last (hot water) fields in the selection at the same time. The fields are dark.

    • Wait until the selection fields are brightly lit. The service menu appears.

  2. iSWxbeMZbFyaGxCu
    iSWxbeMZbFyaGxCu
    HswgWqNS2Rtx1oXC

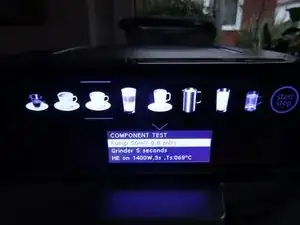

    • You can take the selection one step further by touching the V-shaped area.

    • Start the respective menu item by touching the start/stop area

    • Plenty of items to select from and those are largely self-explanatory (in English).

    • The component test and the sensor test are of particular importance,

    • Other useful items are the error memory and the log files.

    • Press the power button to exit the service menu.

    Is there a service manual for this model

    Frank -

    Hallo Frank,

    Perhaps this link will help:

    Siemens

    Martin -

Conclusion

Reverse the steps to reassemble your device.

Author

VauWeh

Member since: 19/10/15

266546 Reputation

4 comments

Ask for service manual did not get an answer to a simple question

Frank -

@frank54967 Try this link for the service manual.

VauWeh -

Hallo in die Runde, bei meiner Maschine kann ich das Menue nicht öffnen. Die Tasten sind komplett gesperrt, die Anzeige schreibt zwar 3 sek Menuetaste drücken,aber es passiert nichts. Auch das Drücken der beiden Kaffeetassen Symbole bringt keinen Erfolg. Gibt es einen Trick die Maschine komplett zu redeten?

Tom -

Maschine einschalten....Taste "Menü" drücken...dann werden die Felder oben dunkel. Dann die Tasse rechts mit dem +Zeichen drauf gleichzeitig die 1. Tasse links "Espresso" zusammen drücken bis sich das Servicemenue öffnet. Vorsicht beim Setzen auf "Werkseinstellungen" der Bezügezähler geht auf "00000"

Maschine ist EQ6 s300

Helga -
