SiFENE KC101 Nozzle Assembly Replacement

Written By: Yashvi
  • Comments: 0
SiFENE KC101 Nozzle Assembly Replacement

Difficulty

Moderate

Steps

8

Time Required

20 - 30 minutes

Introduction

The nozzle assembly in the SIFENE KC101 Coffee Machine plays a crucial role in connecting the water tank to the pump, ensuring smooth water flow during operation. Over time, wear and tear can cause leaks or disruptions in water dispensing, making it necessary to replace the component. This guide provides a clear, step-by-step process for safely replacing the nozzle assembly. With basic tools and careful handling, the repair can be completed efficiently, restoring the machine’s performance and preventing further issues.

  1. Ecr5E4Es1aN3xe6M

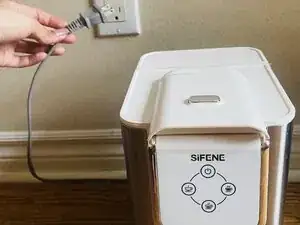

    • Disconnect the coffee machine from the power outlet.

    • Wait for the machine to cool completely before beginning disassembly.

  2. APynOEquvP3BQvJV
    APynOEquvP3BQvJV
    3uuXfVXsKHP5VCPh
    INYAV3DWNLXtGIjg

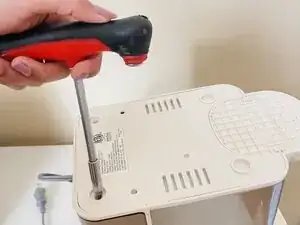

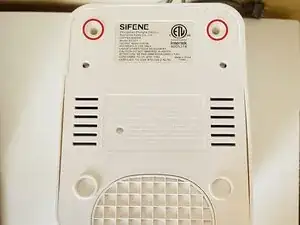

    • Use a Phillips #1 screwdriver to remove the two 10 mm screws securing the bottom cover.

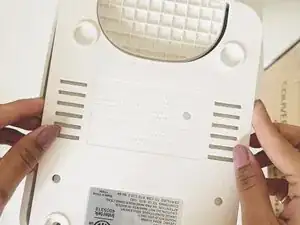

    • Carefully lift the bottom cover up and off.

    • Perform the repair in a dry, well-lit environment to ensure safety and visibility.

  3. RwL4ZxKSVrcDCCKv
    RwL4ZxKSVrcDCCKv
    bZ4lSuoQCSYNx3YW

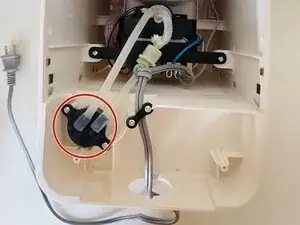

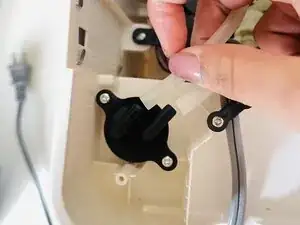

    • Identify the nozzle assembly connecting the water tank to the pump. It is a plastic component with tubing attached, situated to the left of the power cord. ​

    • Gently disconnect the tubing connected to the nozzle assembly. Take care not to damage the tubing.​

    • Mark the tubes with tape or labels to ensure accurate reassembly.

  4. PN4EPxQSrHC3DMar
    PN4EPxQSrHC3DMar
    u2dgMhLxcHQkXU2W

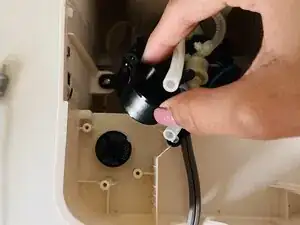

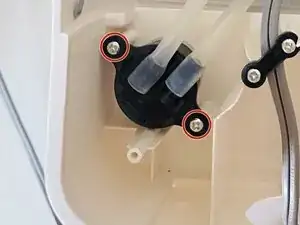

    • Remove the two 8 mm Phillips screws securing the nozzle assembly.

    • Carefully remove the nozzle assembly.

    • If you encounter resistance when removing components, double-check for any missed screws or clips.

    • The remainder of the guide details reassembly.

  5. phSslVVhlIgflsRs

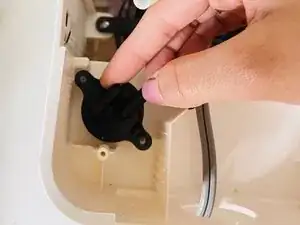

    • Set the new nozzle assembly in place.

    • Secure it with the two 8 mm Phillips screws.

  6. rOwLTHyGpRXcRmBR
    rOwLTHyGpRXcRmBR
    1MrSDoPB2rM5HnWu

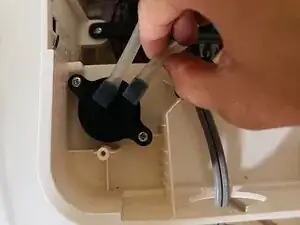

    • Attach the tubing to the new nozzle assembly, ensuring a snug fit to prevent leaks.

  7. mVfKXQUFpADEbJmW

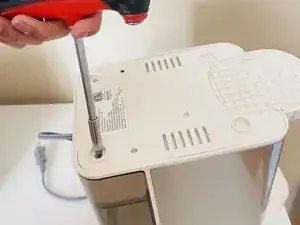

    • Place the top cover back onto the machine.

    • Secure it with the two 10 mm Phillips screws.

    • Ensure all screws are tightened securely but avoid over-tightening to prevent damage.

  8. wUTKRFNAbB4il21T
    wUTKRFNAbB4il21T
    QuGK1RIUrmuDUhgV
    gmSYPMIpRJpFq4XR

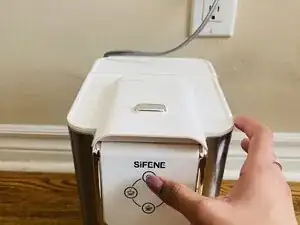

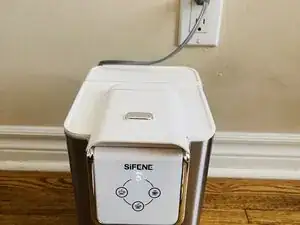

    • Plug the machine back into the power source.

    • Run a test brew cycle with water to ensure there are no leaks and that the machine is functioning correctly.

Conclusion

By following these steps, you can successfully replace the nozzle assembly in your SIFENE KC101 Coffee Machine, resolving issues related to water leakage or dispensing. Regular maintenance and timely replacements of faulty components will extend the lifespan of your appliance and ensure consistent performance.
