Satellite Pro L650 RAM Replacement

Written By: bananakat12345
  • Comments: 0
Satellite Pro L650 RAM Replacement

Difficulty

Easy

Steps

3

Time Required

3 - 5 minutes

Introduction

This guide can be used to replace or improve RAM (Random Access Memory) in a Toshiba Satellite L650

  1. w3tU3EHLKvIiKS1n
    w3tU3EHLKvIiKS1n
    xpBu6gGc4UpxZOpc

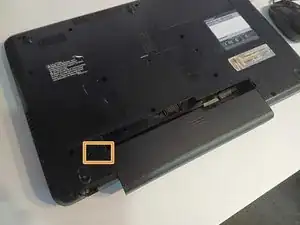

    • (Right Side-Image 1) Pull clip outwards until it sticks

    • (Left side-Image 1/2) While pulling clip outwards, pull the battery with your other hand.

    • When re-assembling, push the battery in then engage right clip (red box)

  2. qsOHfGZNoTq2LU6H
    qsOHfGZNoTq2LU6H
    loFFQwGV5MT1ZQpZ

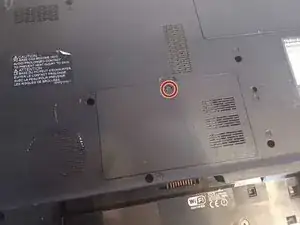

    • (Image 1) Unscrew the screw with a Phillips Head #00

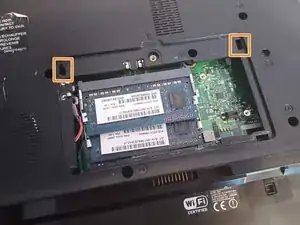

    • (Image 2) Two clips are located at the top. Dissengage them and lift the panel.

    • A spudger can be used, but is not required.

    • When re-assembling, put the clips of the cover in first, then screw

    • Push the clips on the side out

    • Pull the RAM out of the slot

    • Only hold the RAM from the side

    • When re-assembling, make sure to put the RAM the right way up. Insert it into the slot then push down.

Conclusion

To reassemble your device, follow these instructions in reverse order. See the Reminder boxes, located at the bottom of each step, for certain reassembly instructions.
