Samsung Series 5 3G Chromebook Battery Replacement

Written By: Helder Avelino
  • Comments: 1
Samsung Series 5 3G Chromebook Battery Replacement

Difficulty

Easy

Steps

4

Time Required

15 - 30 minutes

Introduction

If your Samsung Series 5 3G Chromebook is not charging properly or it’s not turning on, you may need to replace the battery. Over time, the battery in your Samsung Series 5 3G Chromebook can lose its ability to hold a charge, leading to your battery losing its usage time and it shutting down unexpectedly. Replacing the battery helps restore your Chromebook’s performance back to its original state, making it more reliable for daily tasks. This guide will show you how to safely and easily swap out the old battery for a new one. With just a few basic tools and in about 15 minutes of your time, you can bring your device back to life and stay powered up throughout the day. Follow these steps to give your Chromebook the battery boost it needs!

Model number: XE500C21

  1. 4xLJPBynJZqhUJxB
    4xLJPBynJZqhUJxB
    PfqIuvskclvMSWir

    • Place the laptop on a flat surface with the bottom side facing up.

    • Remove the rubber feet from the bottom of the panel using your fingernails.

    • Remove all the seven screws from the bottom panel.

  2. Q2BCpB2n2NxY1XEX
    Q2BCpB2n2NxY1XEX
    HGBdQhKixkiQQEOy

    • Loosen the back cover panel using a spudger.

  3. NIDCfZ236XRKwQSF
    NIDCfZ236XRKwQSF
    bAAiKRwEjgHTcA5S

    • Once you work your way around, you can remove the panel.

  4. uAdu2PJHSWpfjgBB
    uAdu2PJHSWpfjgBB
    miXF4Rs5heuw2JNT
    SQOqNYZ5RPQdh1gF

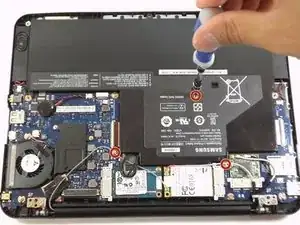

    • Remove three Phillips screws from the battery.

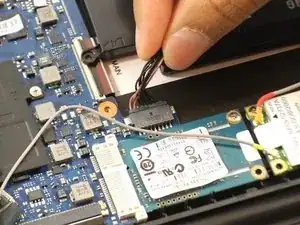

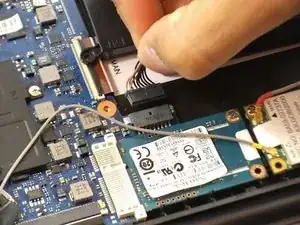

    • Disconnect the battery from the motherboard.

    • Lift the battery up and away from the laptop to remove it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
