Introduction
The motherboard controls a majority of the functions on your phone. Go ahead and dive into this guide for detailed steps on how to remove the motherboard on your device.
Tools
-

                  -

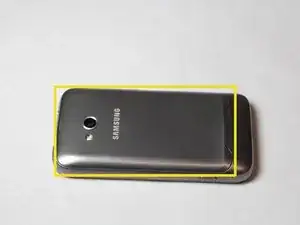

            Place phone face down. Ensure the side with the display screen is not facing you.
-

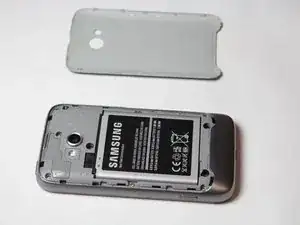

            Locate battery door and slide open.
-

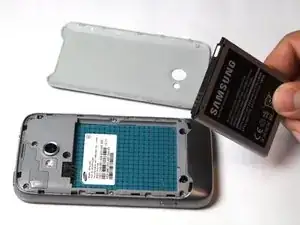

            Remove battery.

-

-

                  -

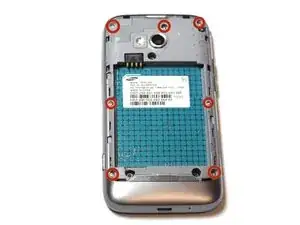

            Remove the 7 Phillips 3.93 mm labeled screws by using the Phillips #00 Precision Screwdriver.

-

-

                  -
            Use the plastic opening tool to pry open the back cover.
-

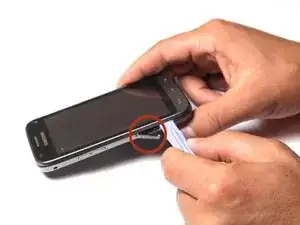

            Insert the tool into the SD card slot and pry around the entire phone.

-

-

                  -

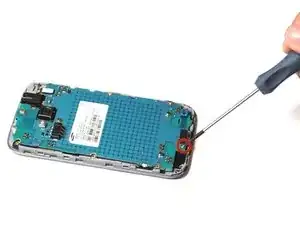

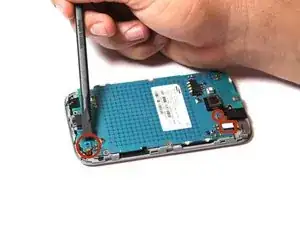

            Carefully disconnect 3 ribbons at the shown location. To remove, place tool under the ribbon and pull slowly to avoid tearing.

-

-

                  -

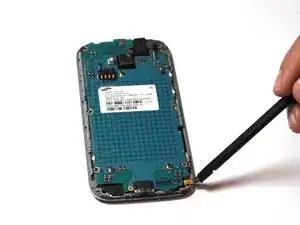

            Pull the motherboard back and out to the left. Make sure the motherboard is faced straight up, as shown in the photo.
-

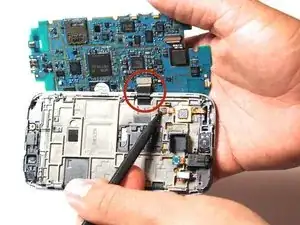

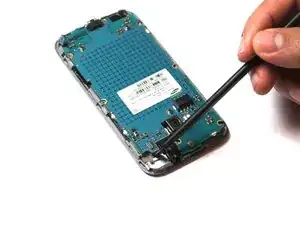

            Place your tool under the labeled area and pull gently to detach the ribbon cable from the motherboard.
-

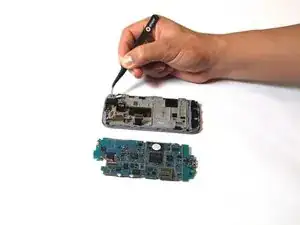

            At this point the motherboard should be completely detached from the rest of the phone.

-

To reassemble your device, follow these instructions in reverse order.
