Introduction
This replacement guide will help you easily follow the steps in order to replace the headphone jack on a Samsung Galaxy Tab A 9.7. The difficulty of this guide is moderate and requires special attention to details.
The headphone jack is also a part of the charging port, so for clarification the part listed is both the charging port connected with the headphone jack.
-
-

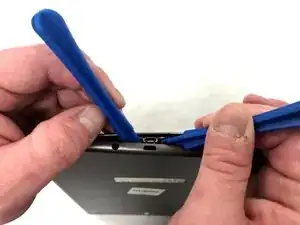

Insert a second iFixit opening tool along the edge and begin to pry open the back cover a little with each one.
-
-
-

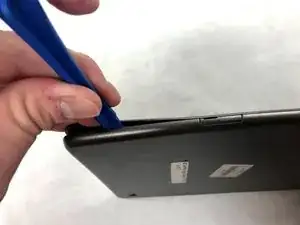

Remove one of the opening tools and begin to go around the device with the other one until the back cover pops off.
-
-
-

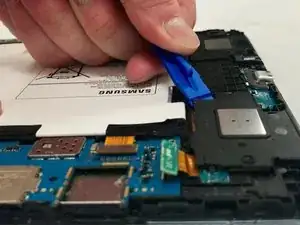

Remove both side pieces using one of the the iFixit opening tools.
-

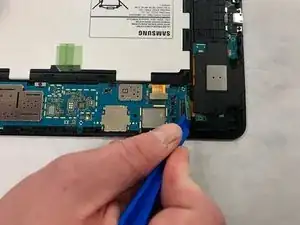

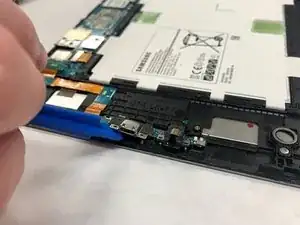

Lift up the headphone jack port with the iFixit opening tool as well.
-
To reassemble your device, follow the instructions in reverse order.
