Samsung Galaxy Tab 4 8.0 Verizon Battery Replacement

Written By: Ofelia Cruz
  • Comments: 6
Samsung Galaxy Tab 4 8.0 Verizon Battery Replacement

Difficulty

Moderate

Steps

7

Time Required

25 minutes

Introduction

Battery life is crucial to maximizing your tablet's utility. This guide will show you the step by step replacement of the Samsung Galaxy Tab 4 8.0 battery. Although replacement is fairly easy, if your tablet's battery has more adhesive than usual, extra force will be needed.

  1. hVSbqFRtL64J6bgX
    hVSbqFRtL64J6bgX
    VQuKJtyvVLGkTonY
    ToGfQNKuytPOOTNW

    • Before disassembling your Samsung Galaxy Tab 4 8.0, be sure it is powered off and you remove the SIM and Micro SD cards.

    • At the top of the tablet, nudge the blue plastic opening tool between the back plastic casing and the front panel's metal rim.

    • Do not use excessive force when prying the clips, fastening the casing together, open because they can easily break.

    How do u find the tool to open it

    Gm -

    u can go and search on trade me

    armaan devgun -

    NOTE: Make sure to remove both the SIM card and the Micro SD card prior to disassembly. Failure to do so could result in broken parts.

    Cameron -

  2. UcQkgHLBBq1UpxKs
    UcQkgHLBBq1UpxKs
    NSMSBsjCCSGKXsZc

    • Continue prying the blue plastic opening tool along the perimeter of the tablet to separate the back plastic casing from the front assembly panel.

    • As right-handers, we found it easiest to move clockwise and use more pressure around the corners to facilitate the process.

    • You might hear several popping noises caused by the plastic clips coming undone.

  3. HAN6vCoOImrIGSwb
    HAN6vCoOImrIGSwb
    WITJQEITloTbRPZ3

    • To avoid damaging the screen, gently set the tablet with the LCD screen faced down.

    • Firmly grasp the back plastic casing and lift it away from the front assembly panel.

  4. bLnjSftm43rQSBCp
    bLnjSftm43rQSBCp
    OqyKLgh2xw4dS2Hq
    KSDF1SCnafQtN6Mp

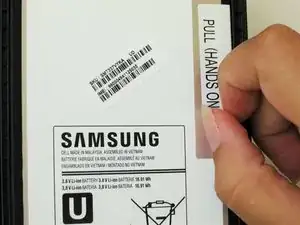

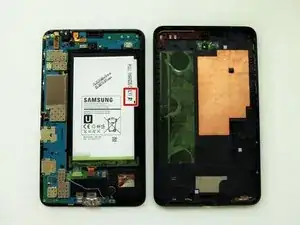

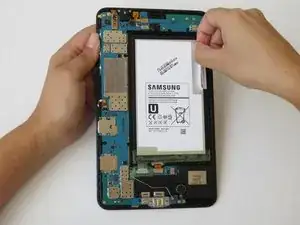

    • Peel up the detachable corner of the white plastic sticker that reads “pull (hands only).”

    • Remove the sticker to form a tab.

  5. yqicDtPgY6QMihrR

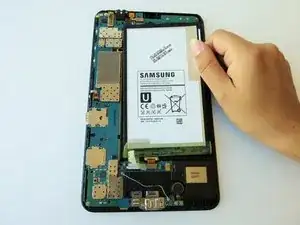

    • Using your thumb and index finger, pinch the tab and pull it up to remove the top right corner of the battery from the front panel assembly.

    • If battery resistance is encountered due to adhesive, use the flat end of a spudger to run in between the battery and the front panel assembly.

    • Do not completely detach the battery just yet, doing so can cause damage to the red and blue cables loacted at the bottom of the battery.

  6. ggOO2iXbUQSHOjZP
    ggOO2iXbUQSHOjZP
    boKCpKNQoqi3AGdC

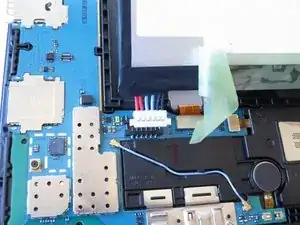

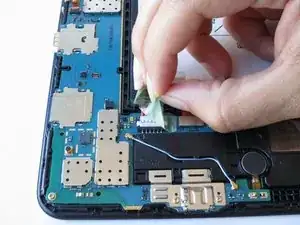

    • Starting at the bottom left side of the battery, gently remove the green tape.

    • Salvage the green tape if the replacement battery does not include one.

  7. WGZF5DRMm5MXBH1O
    WGZF5DRMm5MXBH1O
    G6G2VVODfPEyqOAm
    i1ZXG3C3VVRXYfD5

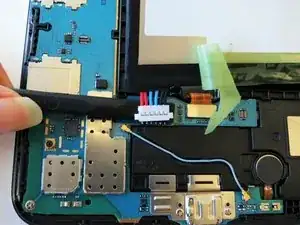

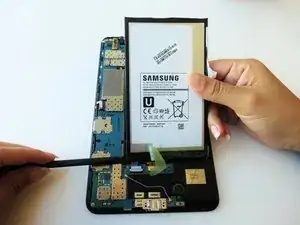

    • Run the spudger under the battery to disconnect the red and blue cable connector from the circuit.

    • Lift the battery towards you, away from the front panel.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Ofelia Cruz

Member since: 14/09/15

1119 Reputation

3 comments

Everything in this guide looks pretty good. The only thing I would add to step one is to make sure you remove both the SIM card and the Micro SD card. Failure to do so can result in a broken SIM/SD card, slot or board they are connected to.

Cameron -

Worked great! Would have been better if I had the pry tools though. I am getting them next week :}

Jason Stephens -

In order to open, I did not want to purchase a pry tool so I used a think screwdriver to open abit and inserted an old credit card that made the job without danger.

Carlos Blanquer Bogacz -
