Samsung Galaxy Sol Rear Camera Replacement

Written By: Samantha Garcia Aguilera
  • Comments: 0
Samsung Galaxy Sol Rear Camera Replacement

Difficulty

Moderate

Steps

7

Time Required

9 - 15 minutes

Introduction

For the Cricket Samsung Galaxy Sol, the camera needed is an OEM CRICKET SAMSUNG GALAXY SOL SM-J321AZ rear camera. Some of the reasons you would need to replace the front camera are water damage or a cracked lens.

  1. JNMvoPTZKkQgHtB1

    • Remove the back case of the phone by using an opening tool or fingernail to lift the divot on the top left side.

  2. B6JtJaEoSnKHtVOg

    • Remove the battery by lifting from the bottom up with an opening tool or a small flat tool such as a credit card.

  3. lgFXSHGCubYjZrrx

    • Remove the grey back of the phone by unscrewing all ten 0.4mm screws with a Phillips #00 screw bit.

  4. iaeUqPmMHmxKy2aQ

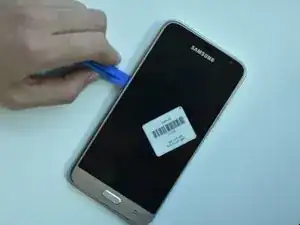

    • After you have removed all the screws, take a credit card or plastic tool to lift the screen. You will go all around the border of the phone.

  5. jHPUxhMAXiqWLnuB
    jHPUxhMAXiqWLnuB
    MIkbxvNMFcTKpPJ6
    UUsWF1hVRUOnuAKE

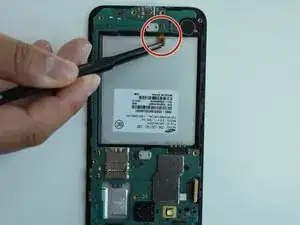

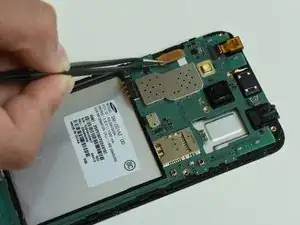

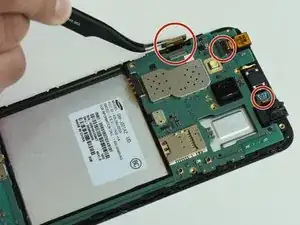

    • After removing the grey part of the phone, you will need to remove the motherboard by detaching all the chips.

  6. APyM3ARDZyccGt4P

    • Once you detach the chips, remove the hard drive to access the rear camera.

  7. gAYeeahISecFvaxO
    gAYeeahISecFvaxO
    1QSH25TAulDyUwKs

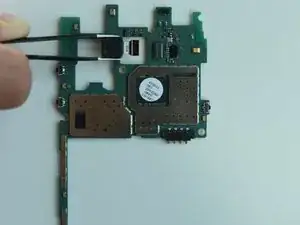

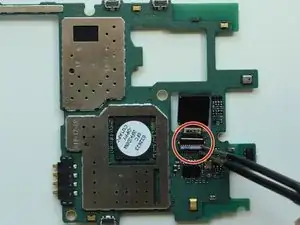

    • To remove the rear camera, flip the tab upward and then pull the camera straight out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
