Samsung Galaxy S4 Mini Speaker Replacement

Written By: Luis Ojeda

Comments: 5

Samsung Galaxy S4 Mini Speaker Replacement

Difficulty

Moderate

Steps

Time Required

15 minutes

Introduction

If the device exhibits trouble playing sounds during calls, notifications, or the use of applications, it might be a good idea to replace the loud speaker on the rear of the phone.

Tools

Parts

Step 1

Press and hold the END key to power the phone down.

Step 2

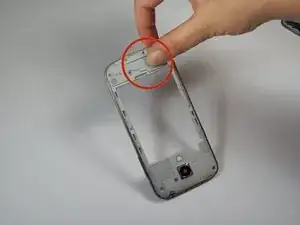

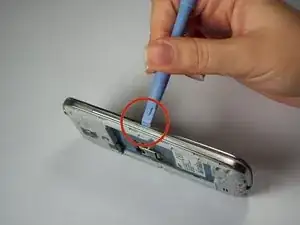

Remove the back cover of the cell phone using a plastic opening tool.

The LEGO Brick Separator (https://www.lego.com/en-us/service/brick...) also works perfectly if you don’t have the iFixit Opening Tool handy.

Håvard Haugen - 24/02/18

Step 3

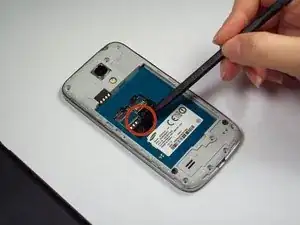

Pry the battery out using a plastic opening tool.

Vai s4 mini motherbotd paua jay

atik.pgm -

Step 4

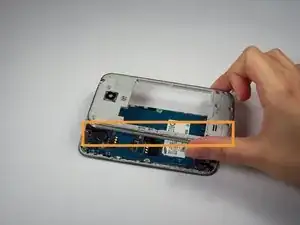

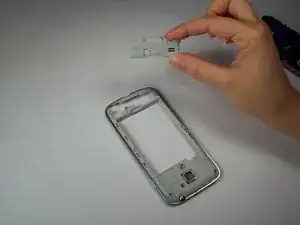

Remove Sim Card using a tweezer or fingers
Remove Memory Card using a tweezer or fingers

Step 5

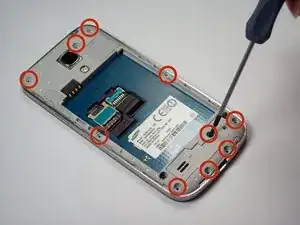

In the back, there are 10 screws with a , which have to be removed with a small Phillips screwdriver tool.

Step 6

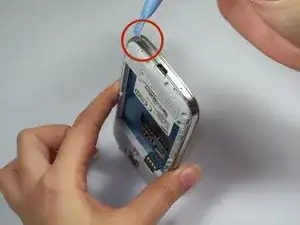

Then, use the plastic opening tool around the cellphone to open the plastic gray cover
Exert the gray cover from the plate and screen would come out easily.
