Samsung Galaxy S20 Plus Screen Assembly Replacement

Written By: Thomas Jones
  • Comments: 0
Samsung Galaxy S20 Plus Screen Assembly Replacement

Difficulty

Moderate

Steps

16

Time Required

45 minutes - 1 hour

Introduction

  1. 3gCHYH22YxQ1l3RI

    • Like most Samsung phones, we will apply heat to the back glass and remove it to access the internals.

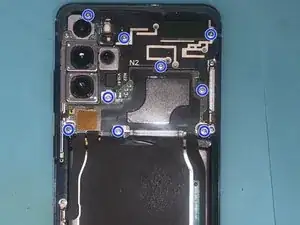

  2. I5MFY25sM5jBKSUu

    • Remove these 9 Phillips screws.

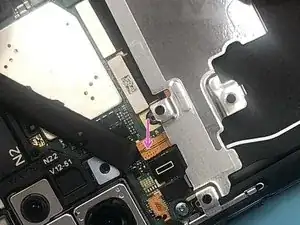

  3. ChrHOjuY2xQXI6N1

    • Fold the metal shield that's connected to the wireless charging coil back, and disconnect the battery connector underneath.

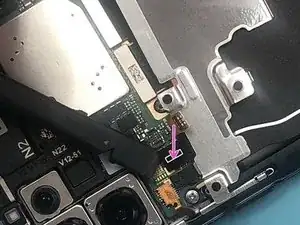

  4. MChhNS61nolcLVas

    • Disconnect the wireless charging coil.

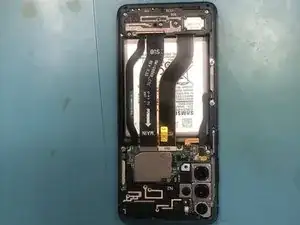

  5. Gy1ow2oqlxibGKfR

    • Remove the wireless charging coil, which is lightly adhered to the bottom part of the battery.

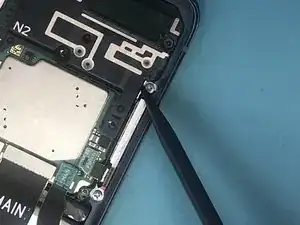

  6. qVpBOZCnfcstHDW6

    • Gently pry here on the upper section of the midframe to pop it out.

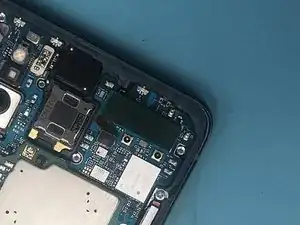

  7. abxkgKQBCVqSoCSN

    • Remove the top section of the midframe.

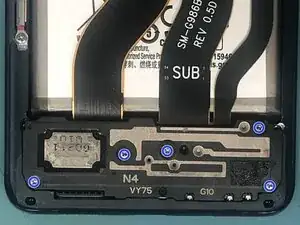

  8. kvPGHwto5cmURVah

    • Remove these 5 Phillips screws.

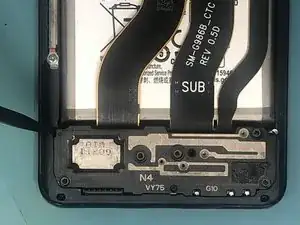

  9. XJJwdHA14Kjc2l4B

    • Gently pry here to loosen the bottom portion of the midframe, then remove it.

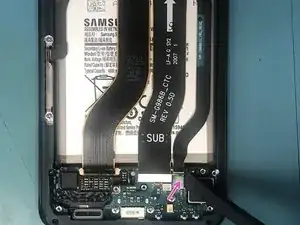

  10. Z2PIsJH2LMwRUtFg

    • Carefully disconnect the bottom side of this flex cable.

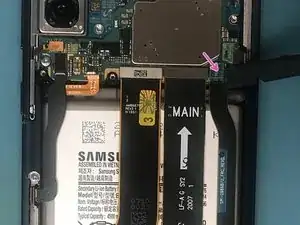

  11. 6wXMMBdyri2rsCxO

    • Then disconnect the top connector and remove the flex cable.

  12. ToR226YOChDHcpCt

    • Next, repeat the same procedure for the main flex cable. Disconnect the bottom connector.

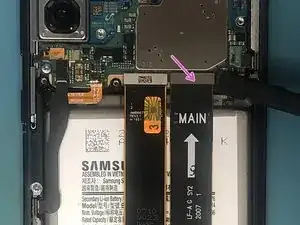

  13. Vr2CroISqP3fRYao

    • Then disconnect the top connector and remove the flex cable.

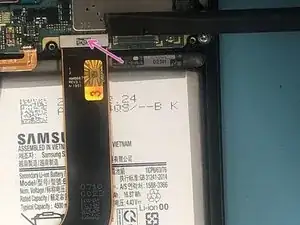

  14. Vk3QotkssvddTLHG

    • Carefully disconnect the display connector.

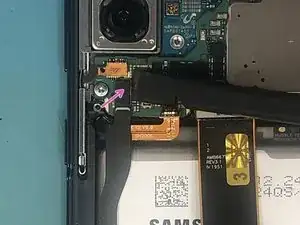

  15. DoI5ZJqYKlokoZSf

    • Disconnect the left side antenna.

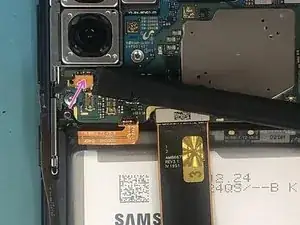

  16. OvTiysBYG2kEefbf

    • Disconnect the volume/power button assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
