Samsung Galaxy Rush Motherboard Replacement

Looking at the back of your phone, use your finger to remove back cover.

Remove the battery.

With a small phillips-head screw driver, remove the six screws holding the back panel in place.

Use the pry tool to pry the back panel from the rest of the phone. Pry from the edge closest to the screen for simplicity.

Using tweezers, gently lift connectors from motherboard.

A connector will be on the upper left

The second connector is located towards the top of the phone. Above the camera. It comes off with ease.

Use the tweezers to carefully remove the 2 adhesive orange ribbons.

These stay attached to the motherboard so be careful not to break them.

They are on the side of the phone.

Use a philips-head screwdriver to remove the single screw on the bottom of the phone. Located to the right of the charging port.

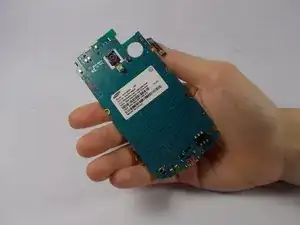

Lift the motherboard upwards separating it from your screen.

At this point your motherboard is separated from the screen.

Just swap in the new motherboard and reassemble.
