Samsung Galaxy J1 Motherboard Replacement

Written By: Sean Kramer
  • Comments: 4
Samsung Galaxy J1 Motherboard Replacement

Difficulty

Moderate

Steps

11

Time Required

30 minutes

Introduction

Use this guide to replace your motherboard. When following these steps ensure that you do not remove the glass screen from the digitizer during step four.

  1. fhKIYu1a2HgYncSO

    • Insert a finger nail or plastic opening tool between the back cover and the device.

    • Gently pry the rear cover off of the back of the phone.

  2. l5OcAi5kCJOmjwCE
    l5OcAi5kCJOmjwCE
    ePJBflBDuFnDoPKR

    • Using a finger, pull the SIM card down out of its slot.

    • Remove the SIM card.

    • The pictured device is missing the SIM card and battery.

  3. YKUP3SALs1KRWZ6N

    • Using a Phillips #00 screwdriver remove the eleven 3 mm screws.

  4. 1HfFU3PqydabS6hR
    1HfFU3PqydabS6hR
    shVR1DfZmX5RJLXA
    uD2BJjUAiN3NFYnH

    • Insert a plastic opening tool between the screen and the back of the device.

    • Starting at the bottom of the device, gently slide the tool along the edges of the screen.

    • Gently pry the main assembly from the midframe of the device.

    • When removing the main assembly, pry gently so as to not crack the glass screen or break any clips within the device.

  5. OSekEe4uiOiVAaxJ
    OSekEe4uiOiVAaxJ
    61E5tLNlZbNIXLqS

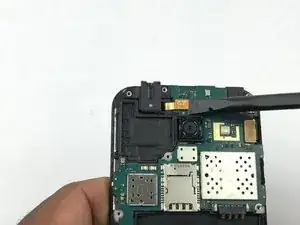

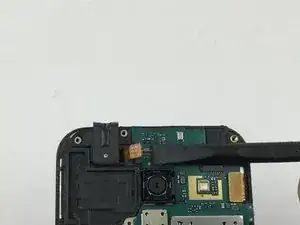

    • Use the flat edge of a spudger to disconnect the ear speaker connector.

  6. dKKYtSFEnUa3dQIc
    dKKYtSFEnUa3dQIc
    nwByvPeXJiiRwEtq

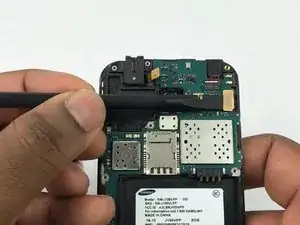

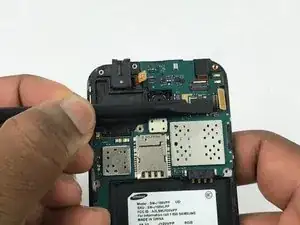

    • Use the flat end of a spudger disconnect the digitizer connector.

  7. HXPi3VQCP6xEJEvl
    HXPi3VQCP6xEJEvl
    ckSMIFWKBWtCTrMW

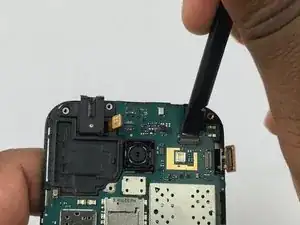

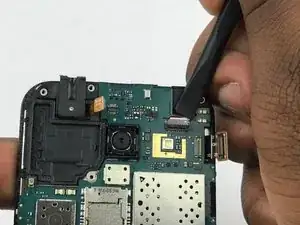

    • Use the flat end of a spudger disconnect the front-facing camera cable connector.

  8. hxUWlx6PYtsURFJv
    hxUWlx6PYtsURFJv
    bwM1MXKMY5SJ4VI1

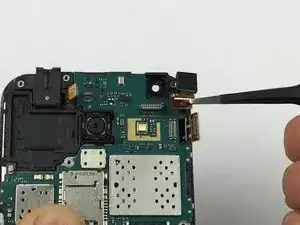

    • Remove the front-facing camera.

  9. rkH1trcH5r5lq4Oy
    rkH1trcH5r5lq4Oy
    DPFTF6FBQXDaLMfL
    aGIqLPZ4BSAuxXZ3

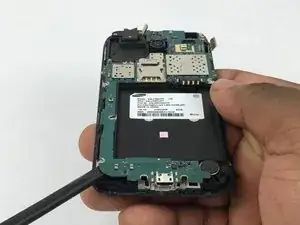

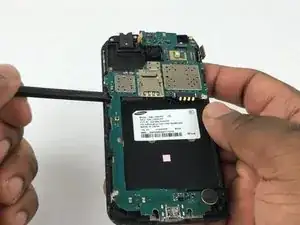

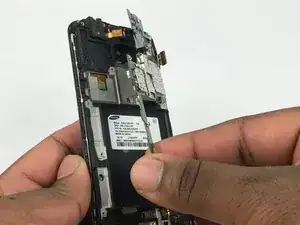

    • Use the flat end of a spudger to gently pry under the motherboard.

    • Remove the motherboard.

  10. BQWoHMBiZfEVy1MP

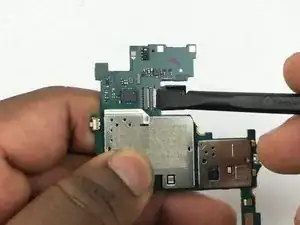

    • Use the flat end of a spudger to disconnect the rear camera cable connector.

  11. PR6aCyc4Mxs32spw
    PR6aCyc4Mxs32spw
    OYvqrpb6lk2NePrb

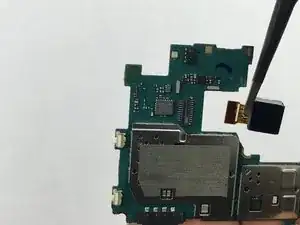

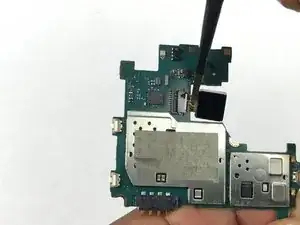

    • Remove the rear camera.

Conclusion

To reassemble your device, follow these instructions in reverse order.
