Samsung Galaxy J1 Front-Facing Camera Replacement

Written By: Sean Kramer
  • Comments: 1
Samsung Galaxy J1 Front-Facing Camera Replacement

Difficulty

Moderate

Steps

6

Time Required

30 - 45 minutes

Introduction

Outline what you are going to teach someone how to do.

  1. fhKIYu1a2HgYncSO

    • Insert a finger nail or plastic opening tool between the back cover and the device.

    • Gently pry the rear cover off of the back of the phone.

  2. l5OcAi5kCJOmjwCE
    l5OcAi5kCJOmjwCE
    ePJBflBDuFnDoPKR

    • Using a finger, pull the SIM card down out of its slot.

    • Remove the SIM card.

    • The pictured device is missing the SIM card and battery.

  3. YKUP3SALs1KRWZ6N

    • Using a Phillips #00 screwdriver remove the eleven 3 mm screws.

  4. 1HfFU3PqydabS6hR
    1HfFU3PqydabS6hR
    shVR1DfZmX5RJLXA
    uD2BJjUAiN3NFYnH

    • Insert a plastic opening tool between the screen and the back of the device.

    • Starting at the bottom of the device, gently slide the tool along the edges of the screen.

    • Gently pry the main assembly from the midframe of the device.

    • When removing the main assembly, pry gently so as to not crack the glass screen or break any clips within the device.

  5. TSAxrZBo3ngCk4Ln
    TSAxrZBo3ngCk4Ln
    VT6UFQtomJZDWgEB

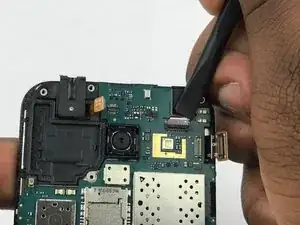

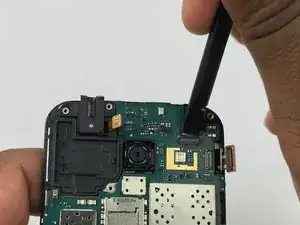

    • Use the flat end a spudger to disconnect the front-facing camera cable connecter.

  6. XmqZuTXasXRbhLrc
    XmqZuTXasXRbhLrc
    u5EVOu3b1FqTNjlf

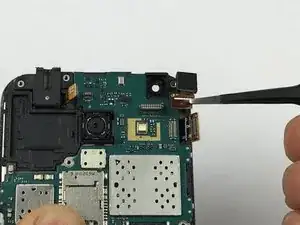

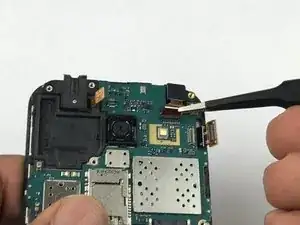

    • Using tweezers, or your fingers, remove the front-facing camera.

    Como se mide el puerto de la camara

    juandavid borrero -

Conclusion

To reassemble your device, follow these instructions in reverse order.
