Introduction

The Samsung Galaxy Camera has many wonderful features for its time like a 21x zoom and 1080p resolution. However, none of these features matter if the device can not be used. The screen is necessary to operate the Samsung Galaxy Camera since taking photos and recording videos are all done by interacting with the screen. Repairing the broken screen is vital to being able to properly utilize the device.

Some reasons the screen may need replacement are due to cracks or due to a malfunctioning display. This guide will help in the case that the screen itself is the issue. If the device was damaged through external force or exposure, there is the possibility of issues being caused by internal damage, such as a faulty motherboard. That guide can be found here. Use the troubleshooting page to review possible issues and identify what repair seems most applicable.

This guide has a moderate difficulty because it requires a decent amount of disassembly and handling of internal parts. Beyond that, there is not any specialist knowledge required. Be mindful when performing any prying to avoid accidentally damaging the device. Make sure to disconnect the device from any power sources before starting.

  1. gBtaDMAdKNfNprUe
    • Begin removing the 3/16" screws for the device.

  2. XTAPnDufPAVgrXBy

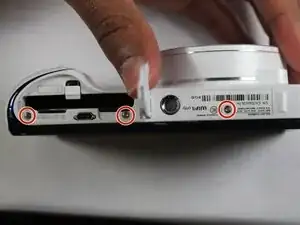

    • Turn the device and remove the additional 3/16" screws.

  3. wqLKVLRHQPCj4M1B

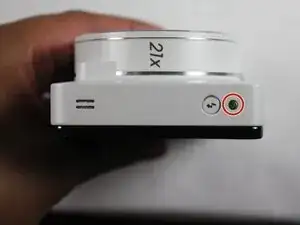

    • Turn the device and remove the additional 3/16" screw.

  4. 4qyDnYFPWejTZ5fq
    4qyDnYFPWejTZ5fq
    wMZGWqDEfWYD2lDH
    XYa6GEc6HUmHmjXp

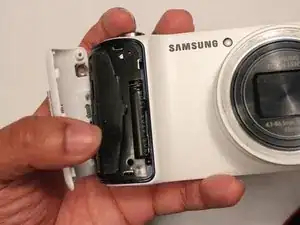

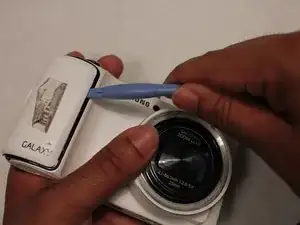

    • Take the white cover plate off.

  5. rF4RpdBUKWSjTMhR

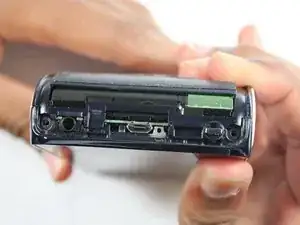

    • Using the plastic opening tools, pry open the camera from the bottom.

    • This may require a moderate use of force because of the sealing glue.

  6. 2iGd1oU2LI2tXu4Z

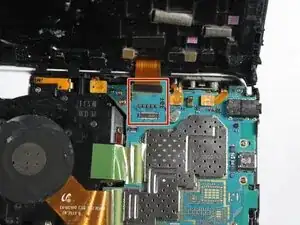

    • Gently pull the connector away from the motherboard.

    Help! I can't get this connector back in place! How did you do it?

    Thanks!

    rotraut geringer -

    Got it finally - and it's working again, I can't believe it! Thank you so much for the instructions!!!!

    rotraut geringer -

Conclusion

To reassemble your device, follow these instructions in reverse order.
