Samsung Galaxy A10 Charging Port Replacement

Written By: ZFix
  • Comments: 3
Samsung Galaxy A10 Charging Port Replacement

Difficulty

Moderate

Steps

7

Time Required

25 minutes

Introduction

Samsung A10, A10s Micro USB Charging connector Replacement

  1. WsFDN565JBR2yMFJ
    WsFDN565JBR2yMFJ
    oZEUOFQEOasFGPgj
    XNg6GsHxuTXGEFnu

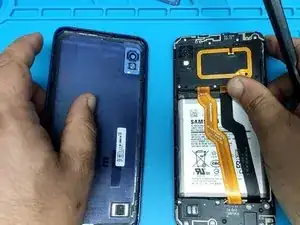

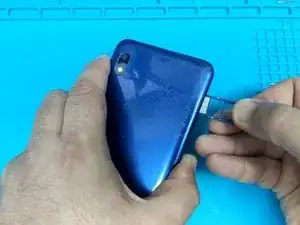

    • Remove the SIM Tray.

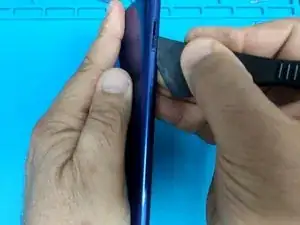

    • Use plastic tools to separate the back cover.

  2. sQeUTgmyiiM24FmW
    sQeUTgmyiiM24FmW
    jtS2a3PdDuFcqP1w
    Ywc6JZisbXAhKHmA

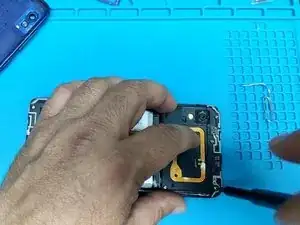

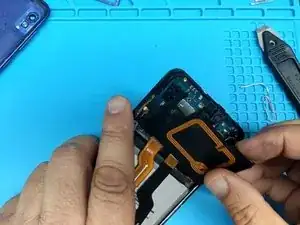

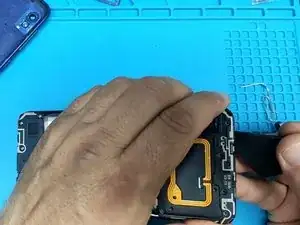

    • Remove the silver Phillips screws to be able to disassemble the motherboard shields.

  3. eoxWfSDx6lVgV1XR
    eoxWfSDx6lVgV1XR
    pQ5VmjsRUOnDMRTj
    UTjsIGep5GlMer2Z

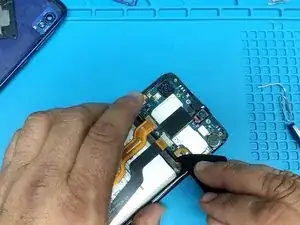

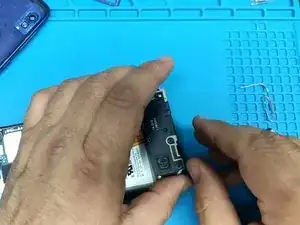

    • Disconnect the battery.

    • Remove the screws and the charging board shield.

  4. 3raANqY3RDHGARZN
    3raANqY3RDHGARZN
    LtnbTp4TOGQZHYNc

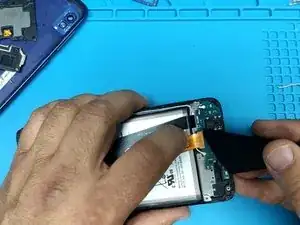

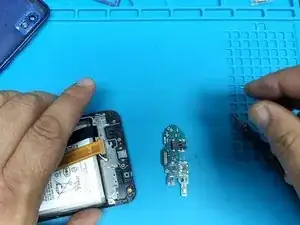

    • Disconnect the main flex cable and the coaxial antenna cables.

    • Remove the charging board.

  5. GoORTNdMOIgxPK6a
    GoORTNdMOIgxPK6a
    mRcLSNfWgj6jlovR
    UBJ4fjbOYXWrCfXE

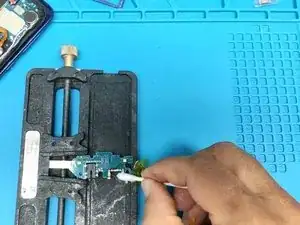

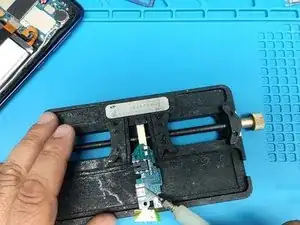

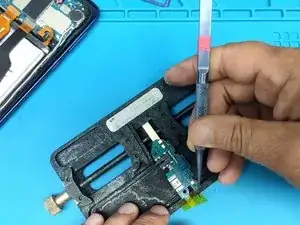

    • Cover the microphone hole to prevent microphone damage.

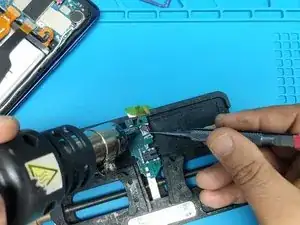

    • Use hot air to remove the Micro USB connector.

  6. UaVqp2YvYM4eTStw
    UaVqp2YvYM4eTStw
    gO3NtWOZS1T1WX3O
    jAR2ctPec5K4lgdX

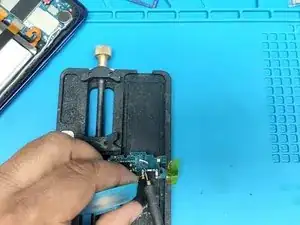

    • Clean the tin and install the new charging connector.

  7. WxAoRXWdULjhEMJx
    WxAoRXWdULjhEMJx
    6YhYHjhuki6shRHD

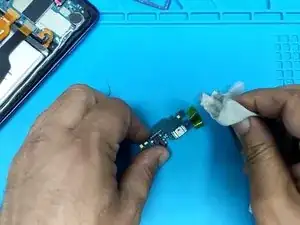

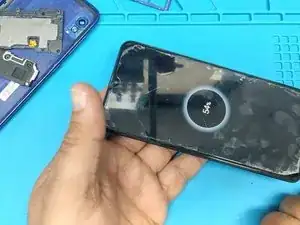

    • Clean the board and test the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
