Samsung Chromebook XE500C21-A03US Battery Replacement

Written By: Alexis Cortez
  • Comments: 0
Samsung Chromebook XE500C21-A03US Battery Replacement

Difficulty

Easy

Steps

5

Time Required

7 - 15 minutes

Introduction

This guide will help you replace your battery in your Chromebook by showing you step-by-step on how to remove it.

  1. DKIvXONWOPrTkWH4
    DKIvXONWOPrTkWH4
    mJu2J3MidDTGwZpS
    xWNaLkxlHxCVwt4E

    • Turn the power off before beginning this step.

    • Most Chromebooks contain rubber circle pads on each of the four corners to cover the screws. In order to remove the rubber pads, simply use any opening tool.

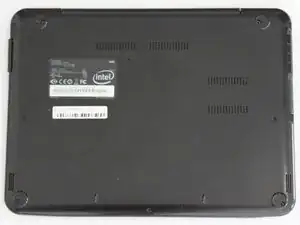

    • Lay the Chromebook down so that the bottom cover is facing upward.

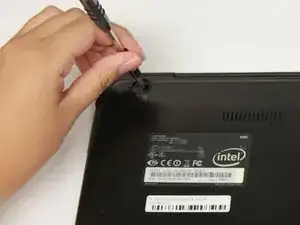

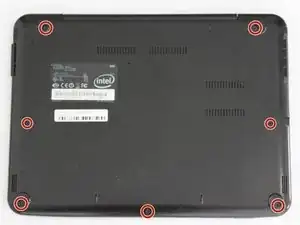

    • Using a Phillips #00 screwdriver, remove all seven 5.5 mm screws from the back cover.

  2. bKiVKEpPYOFeaTVi
    bKiVKEpPYOFeaTVi
    URyyYQVc14qvmKf5
    HgPpY2RMwqM4dnGA

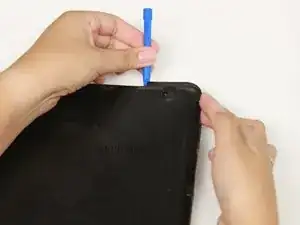

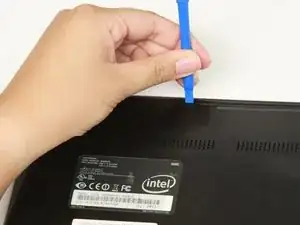

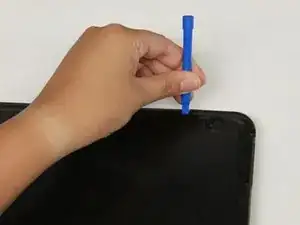

    • Place the opening tool in the divot between the spine of the Chromebook and the back cover.

    • Slowly glide and push down the end of the opening tool along all sides of the Chromebook to detach the brackets. You will hear the brackets detach.

  3. cmMZHsYWd2EIOtv4
    cmMZHsYWd2EIOtv4
    kOCVcNCdwND1mnoc

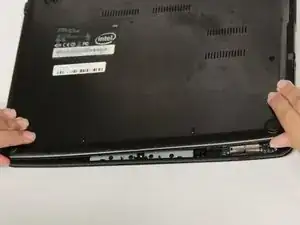

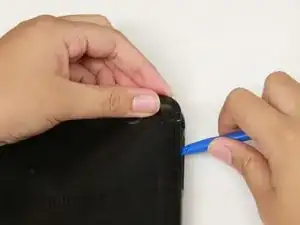

    • Using the opening tool, pry off the back cover of the Chromebook

    • Be gentle while prying to avoid breaking the back cover.

  4. txmrU54fWqYYO5kZ
    txmrU54fWqYYO5kZ
    cA4EmJBGO6vStXvb

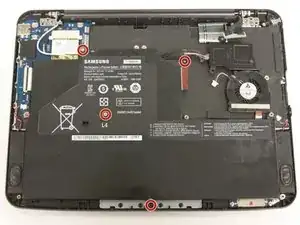

    • Remove the four 3 mm screws using a Phillips #000 screwdriver.

  5. 4oPXLgMDshkVTOkL
    4oPXLgMDshkVTOkL
    hgdSA5OGchhSQHeR

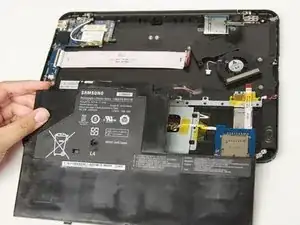

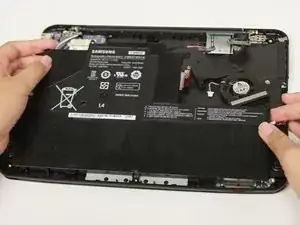

    • Carefully lift the top of the battery then pull it away from you to remove it.

    • Some batteries may be attached via a battery connector. Disconnect the battery connector by simply pulling straight up at its base.

Conclusion

To reassemble your device, follow these instructions in reverse order.
