Introduction
-
-
Hold the power button on the keyboard until the device powers off.
-
Close the device and flip it over.
-
Remove the four rubber sockets on each corner of the device with your fingers.
-
Remove the four 4.6 mm screws with a Phillips #00 screwdriver.
-
-
-
Starting near the hinges, use a metal spudger to gently pry the back off. Continue along the edges until the back is completely detached.
-
-
-
Locate a long gray box labeled “Laptop Battery.”
-
Remove the two 4 mm screws with a Phillips #00 screwdriver.
-
After removing the screws, remove the gray piece labeled “bracket battery BA61 - 03983A.” This piece is located over the golden band connecting the battery and the motherboard.
-
-
-
Unplug the golden band that connects the battery to the motherboard.
-
Use the Phillips #000 screwdriver to remove the four 4 mm screws holding the battery in place.
-
-
-

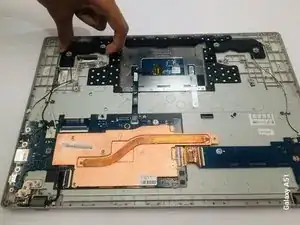

Face the hinges of the motherboard toward you.
-

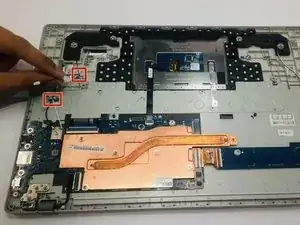

Pull out the white plug-in piece indicated in the photo.
-
Remove only the red and black wire from the wire guide, and ensure all other wires are in place.
-
Lift the black L-shaped piece called “>PC+ABS<S1-C(L) R0.0 BA96-07326A.”
-
-
-

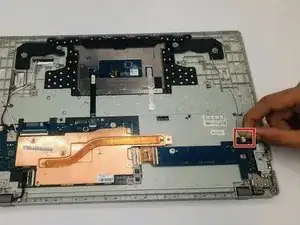

Face the hinges of the motherboard toward you.
-

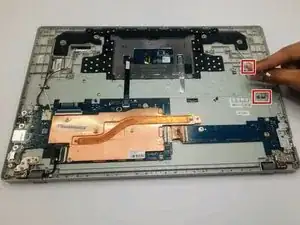

Pull out the white plug-in piece indicated in the photo.
-
Remove only the white and black wire from the wire guide, and ensure all other wires are in place.
-
Lift the black L-shaped piece called “>PC+ABS<S1-A(R) R0.0 BA96-07326B.”
-
To reassemble your device, follow these instructions in reverse order.
