Samsung Chromebook 4 Plus XE350XBA-K05US Device Screen Replacement

Hold the power button on the keyboard until the device powers off.

Close the device and flip it over.

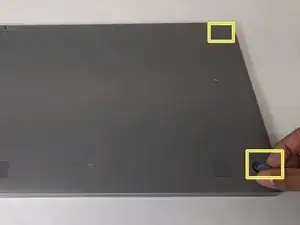

Remove the four rubber sockets on each corner of the device with your fingers.

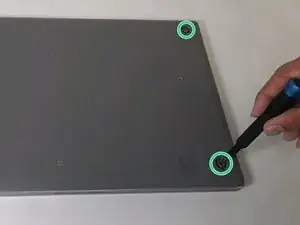

Remove the four 4.6 mm screws with a Phillips #00 screwdriver.

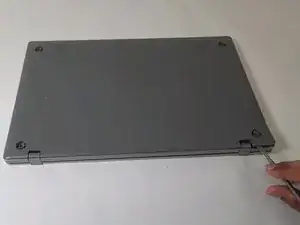

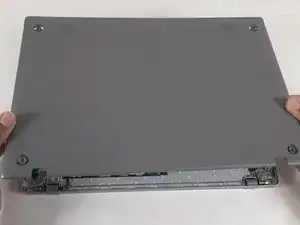

Starting near the hinges, use a metal spudger to gently pry the back off. Continue along the edges until the back is completely detached.

Locate a long gray box labeled “Laptop Battery.”

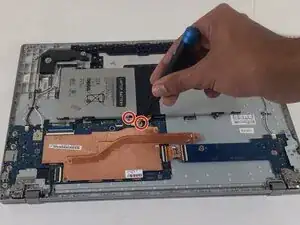

Remove the two 4 mm screws with a Phillips #00 screwdriver.

After removing the screws, remove the gray piece labeled “bracket battery BA61 - 03983A.” This piece is located over the golden band connecting the battery and the motherboard.

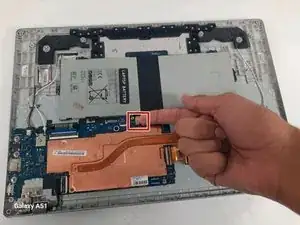

Unplug the golden band that connects the battery to the motherboard.

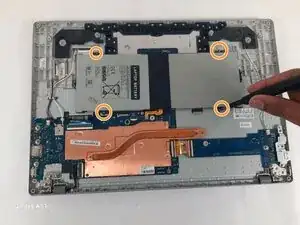

Use the Phillips #000 screwdriver to remove the four 4 mm screws holding the battery in place.

Face hinge side towards you

Unscrew three 4.55mm Philips #000 screws (pointed by the arrow heads) from the each of left and right hinges

Pull out the black film connected to the motherboard in the white slot

Open up chromebook hold onto the hinges as you open to make it easier

Separate the keyboard and screen and put the keyboard off to the side

Use the ifixit opening tool to pop the outer edge of the scree up

Remove the four 3mm Phillips #000 screws

Lift the screen up slowly

Find the black wire on the back and lift the metal clamp

Pull the black film to remove the wire
