Introduction
-
-
Face hinge side towards you
-
Unscrew three 4.55mm Philips #000 screws (pointed by the arrow heads) from the each of left and right hinges
-

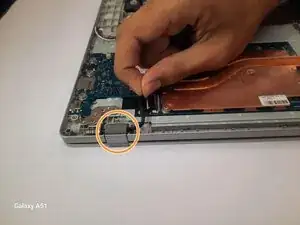

Pull out the black film connected to the motherboard in the white slot
-
-
-
Open up chromebook hold onto the hinges as you open to make it easier
-
Separate the keyboard and screen and put the keyboard off to the side
-

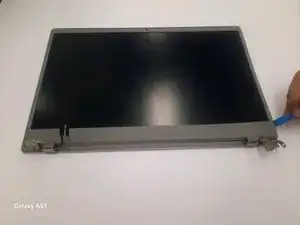

Use the ifixit opening tool to pop the outer edge of the scree up
-
-
-

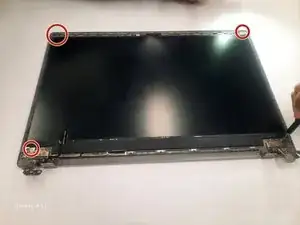

Remove the four 3mm Phillips #000 screws
-
Lift the screen up slowly
-

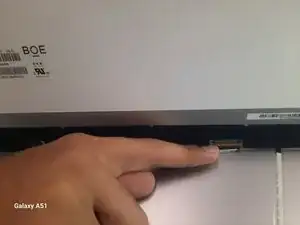

Find the black wire on the back and lift the metal clamp
-
Pull the black film to remove the wire
-
-
-
Remove the three 2.8 mm screws marked by arrows from both the left and right hinges
-
Lift the hinges
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
