Samsung BD-H5100 Motherboard Replacement

Written By: Mira Patel
  • Comments: 2
Samsung BD-H5100 Motherboard Replacement

Difficulty

Moderate

Steps

10

Time Required

35 minutes

Introduction

This guide will show how to replace the Motherboard.

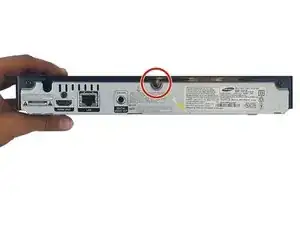

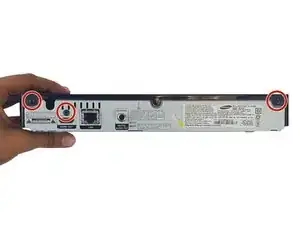

  1. U2wRsLJK216Olbum

    • Use the Phillips Head #2 screwdriver to remove the three 10mm screws on the back panel.

  2. 4yvneFrKOlqUFM3J
    4yvneFrKOlqUFM3J

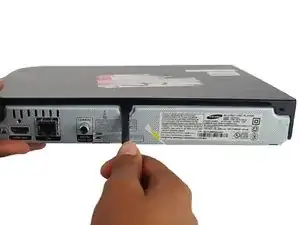

    WlZf2IfpRm1BZgeF

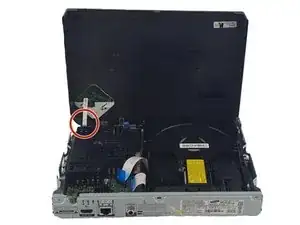

    SOSXwcacU4VYWdJH

    • Use the plastic spudger to pry open the top panel.

    • Be careful not to break the ribbon connecting the motherboard on the bottom panel to the top panel.

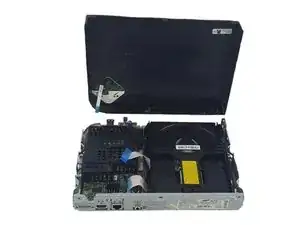

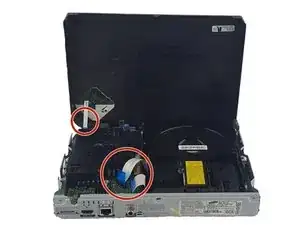

  3. rkSFkDJxPvOIScvf
    rkSFkDJxPvOIScvf
    mdC6wYan5ajEATAb

    • Pull the ribbons gently from one corner by the blue tabs to remove it.

  4. WjtToPd3Ayt3WCRt

    • Remove the two 7.5mm screws on both sides of the disk tray with Phillips Head #2 screwdriver.

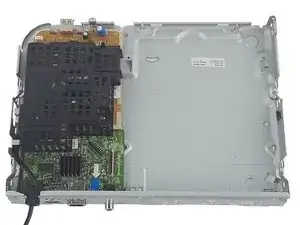

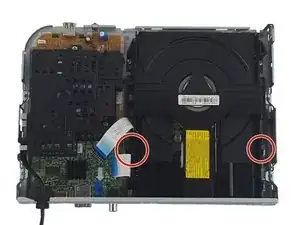

  5. fjE1KFNhSJqtKf5v
    fjE1KFNhSJqtKf5v
    dSB22C1NVVoFjHqd

    • Push two small prongs on both sides inwards and push forward.

    • Remove the disk tray.

  6. ZiXv4cxFeRylTUXx
    ZiXv4cxFeRylTUXx
    BLDcIbJ5q2TNdOCI

    • Use a Phillips Head #2 to remove the two 7.5mm screws on the black cover.

    • Remove the black cover.

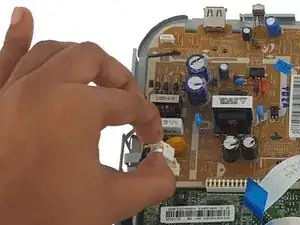

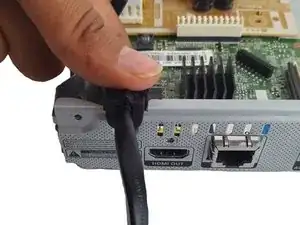

  7. UtsRhBoBTHZuaQQg
    UtsRhBoBTHZuaQQg
    HLdBZcjlCPsuCZBP

    • Pinch the white clip and pull straight up on the power cord.

    • Remove the power cord.

    If have This Power supply Unit? FOR sale?

    Prasuthan Visvalinkam -

    I need this power uint board? To buy?

    Prasuthan Visvalinkam -

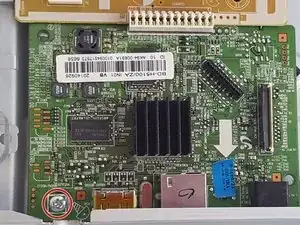

  8. SnoGcOLhUm4VneGt

    • Use a Phillips Head #2 to remove the 7.5mm screw.

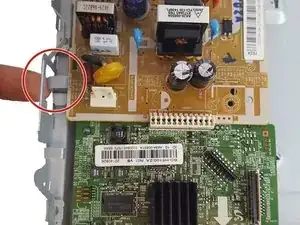

  9. 4PwOwLZMx5egfBNd

    • Use your finger to pry the metal tab slightly up.

    • This may break after several uses.

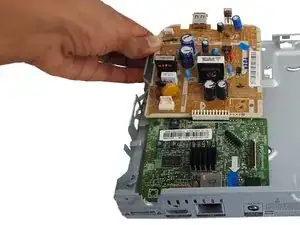

  10. UZhGMhvAsBup3T4f

    • Slide out the Motherboard.

    • Be careful when touching the bottom because it is sharp.

Conclusion

To reassemble your device, follow these instructions in reverse order.
