Samsung ATIV Book 7 NP740U3E-K01UB Speaker Replacement

Written By: Alexander Nwonye
  • Comments: 0
Samsung ATIV Book 7 NP740U3E-K01UB Speaker Replacement

Difficulty

Moderate

Steps

7

Time Required

15 minutes

Introduction

This replacement guide will aid the replacement of the speakers showing you a thorough breakdown on what steps to follow to achieve this task efficiently.

  1. TUXv3eByCDElqQ2j
    TUXv3eByCDElqQ2j
    JN5ImH6lv4MLi3Xm

    • Remove the ten 5 mm screws that hold the backplate using the Phillips #000 screwdriver.

  2. pFDxBv3YFAs2MOgZ

    • Remove the backplate.

  3. tUKMVZnMRhcffJkM

    • Remove the six 5mm screws that hold the battery by using the Phillips #0 screwdriver.

  4. YNgWnSCwGIkMBeSs

    • Disconnect the battery from the motherboard and remove the battery.

  5. Up3ZQIDZDa2Nhldi

    • There are two speakers which are found on the lower left and right side of the laptop, beside the battery.

  6. DsTHT1Vc2KPDdAWu

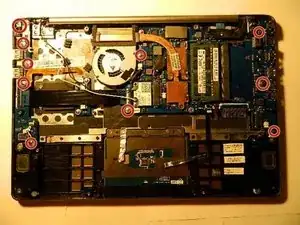

    DsTHT1Vc2KPDdAWu

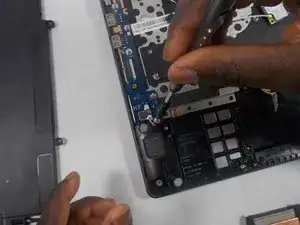

    fMsBhjZFWMjYhsYv

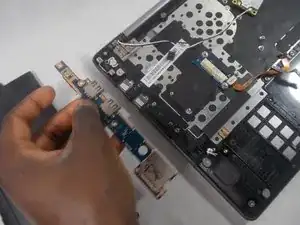

    2QkwHuqBAVfBaGvQ

    • Remove the screws of the motherboard to disconnect the motherboard from the speakers using a Phillips #0 screwdriver.

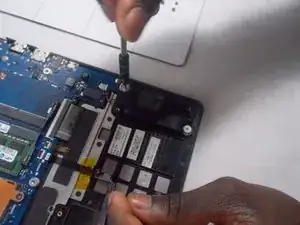

  7. jWUIajyo4w2pDl6O

    • Remove the 4 mm screw with the Phillips #000 screwdriver and remove the speaker.

Conclusion

To reassemble your device, follow these instructions in reverse order.
