Saeco Incanto SBS Piston Head Seals / O-rings Replacement

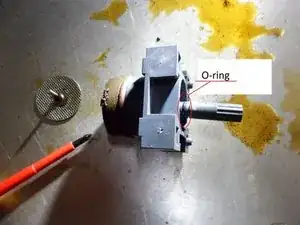

I show you the O-rings in the top piston of the brewgroup. I don't write much, because my english is bad, but the photos speak for themselves. Good luck

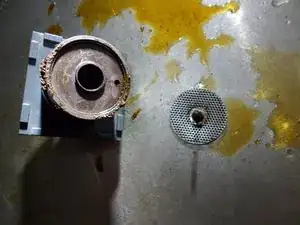

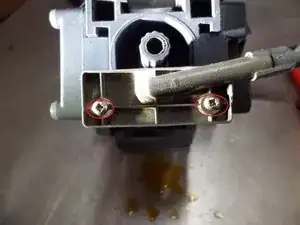

Two screws, PZ 1

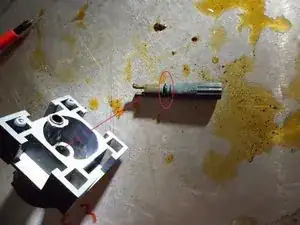

Careful, there is a spring.

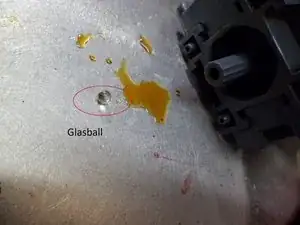

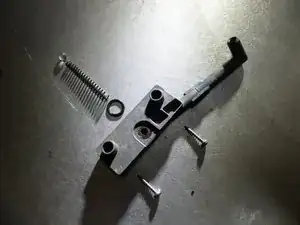

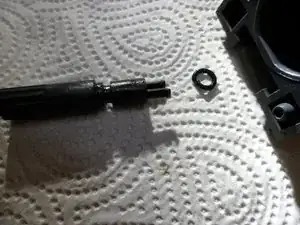

Spring, O-ring and a GLASBALL.

Ja

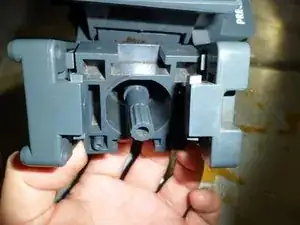

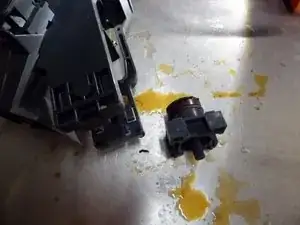

Remove the piston. More information in my guide " Disassembling & Cleaning the Brewgroup" here.

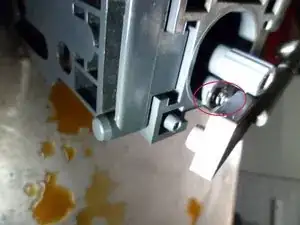

Screw PZ 1

Counterrotate turning the screw.

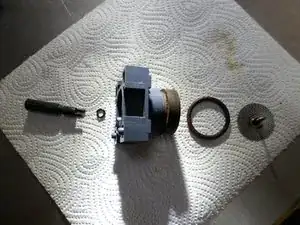

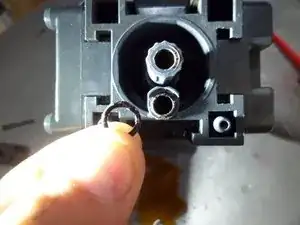

Then pull that thing and you find another seal

Details

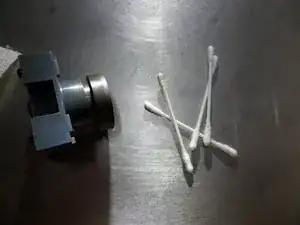

Tools for cleaning, ja toothbrush

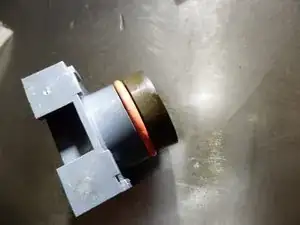

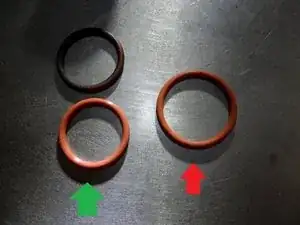

There are two types of O-rings. For this type of piston you need the smaller.

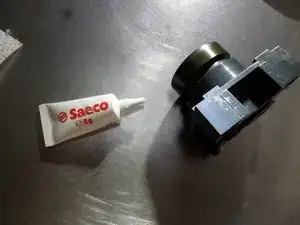

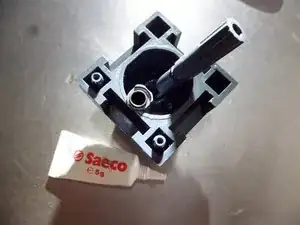

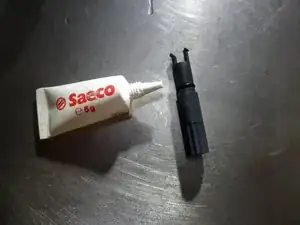

Grease it a liitle.

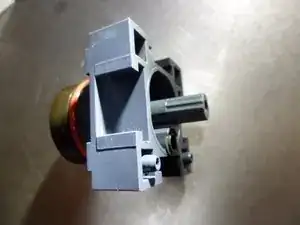

Just put it back, no problem.

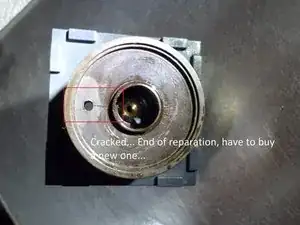

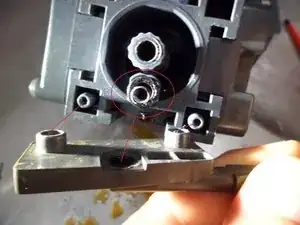

...and then I found a crack in my piston. That can not be repaired. So I had to buy a new piston.
