SGIN X15S Heat Sink Replacement

Written By: JadenS
  • Comments: 0
SGIN X15S Heat Sink Replacement

Difficulty

Moderate

Steps

5

Time Required

No estimate

Introduction

While working on your device, if you notice that the battery is swollen, stop your replacement and follow the swollen battery disposal guide. Before working on your device, ensure that it is turned off and completely unplugged from any power sources.

  1. mLO5onexhVep3pZL
    mLO5onexhVep3pZL
    susLNMoYYIeIRcuM
    ObTyDDAEqlJlwfPf

    • Remove the eight top and middle 7.3 mm screws using the Phillips #0 screwdriver.

    • Remove the six bottom and side 4.4 mm screws using the Phillips #0 screwdriver.

  2. dRojUf4NS11wOsUI
    dRojUf4NS11wOsUI
    BXCLxKZGusMBUNkE
    2tkyrEXnDYrnnwr1

    • Use the nylon spudger to gently pry a bit of the back panel open. With the opening pick, go all the way around until the back panel is loose.

    • Pull the back panel off the laptop.

  3. vJl6SF3FKtjLaULF
    vJl6SF3FKtjLaULF
    mxTGNMSn6vrZvot2

    • Gently remove the tape holding the battery's cord to the motherboard, followed by the tape in the middle of the cord.

    • If your battery is swollen, halt this guide and follow the swollen battery disposal guide.

  4. Aj6NtA5rRDZ5ckda
    Aj6NtA5rRDZ5ckda
    ddLrvBNmMlhKaEDW
    d2qCBsFpIYZBrZaj

    • Use the nylon spudger to detach the battery from the motherboard.

  5. YkGPtuCeqyFFIJKM
    YkGPtuCeqyFFIJKM
    FYmh4wXQWlTIoQSG
    aUcQWQ5XhpyIiPuu

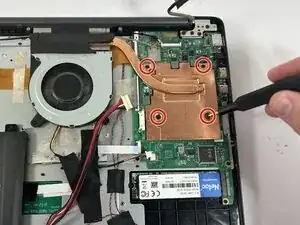

    • Remove the four 3 mm screws holding the heatsink in place using a Phillips #0 screwdriver.

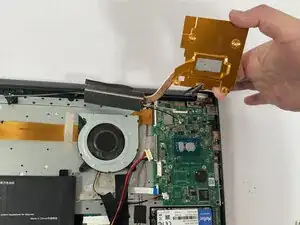

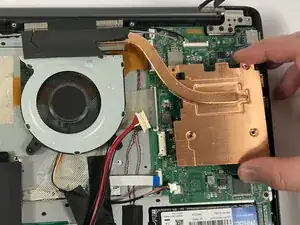

    • Lift and remove the heatsink.

    • There is thermal paste on the bottom that will need to be cleaned off and reapplied if the motherboard is replaced.

Conclusion

To reassemble your device, follow these instructions in reverse order.
